# Mastering VHDL: A Practical Guide to Programming by Example
VHDL, the VHSIC Hardware Description Language, is the cornerstone for designing and simulating digital electronic systems. From simple logic gates to complex microprocessors, VHDL empowers engineers to describe hardware functionality at various levels of abstraction. While textbooks provide a solid theoretical foundation, truly grasping VHDL often comes down to one thing: **programming by example**.
This comprehensive guide will walk you through the practical aspects of VHDL, using clear, actionable examples to illustrate core concepts. You'll learn not just *what* VHDL syntax looks like, but *how* it translates into actual hardware behavior, equipping you with the skills to confidently embark on your digital design journey.
---
Understanding the VHDL Landscape: Entity and Architecture
Every VHDL design begins with two fundamental components: the **entity** and the **architecture**. Think of the entity as the blueprint's cover – it defines the external interface of your hardware block (its inputs and outputs). The architecture, on the other hand, is the detailed drawing inside, describing the internal behavior and structure.
Example 1: A Simple AND Gate
Let's start with the simplest building block: an AND gate.
```vhdl
-- Library declarations
library ieee;
use ieee.std_logic_1164.all;
-- Entity declaration
entity AND_Gate is
Port ( A, B : in std_logic;
Y : out std_logic );
end AND_Gate;
-- Architecture definition
architecture Behavioral of AND_Gate is
begin
Y <= A and B; -- Concurrent signal assignment
end Behavioral;
```
- `library ieee; use ieee.std_logic_1164.all;`: These lines are standard and include the necessary package for `std_logic` data types, which represent single bits (0, 1, Z, X, etc.).
- `entity AND_Gate is ... end AND_Gate;`: Declares a hardware block named `AND_Gate`.
- `Port ( A, B : in std_logic; Y : out std_logic );`: Defines two input ports (`A`, `B`) and one output port (`Y`), all of type `std_logic`.
- `architecture Behavioral of AND_Gate is ... end Behavioral;`: Describes the internal logic. `Behavioral` is just a name for this architecture.
- `Y <= A and B;`: This is a **concurrent signal assignment**. It means `Y` will *always* reflect the logical AND of `A` and `B`. In hardware terms, this describes a direct combinatorial connection.
---
Concurrent vs. Sequential Logic: Controlling the Flow
VHDL allows you to describe both concurrent (always active) and sequential (clock-triggered) logic. Understanding the difference is crucial for designing practical circuits.
Example 2: A 2-to-1 Multiplexer (Concurrent Logic)
A multiplexer (MUX) selects one of several input signals and forwards it to a single output line based on a select signal. This is often implemented using concurrent statements.
```vhdl
library ieee;
use ieee.std_logic_1164.all;
entity MUX_2_to_1 is
Port ( I0, I1 : in std_logic;
Sel : in std_logic;
O : out std_logic );
end MUX_2_to_1;
architecture Dataflow of MUX_2_to_1 is
begin
-- Concurrent signal assignment using 'when-else'
O <= I0 when Sel = '0' else
I1;
end Dataflow;
```
- `O <= I0 when Sel = '0' else I1;`: This `when-else` statement is concurrent. If `Sel` is '0', `O` gets `I0`; otherwise, `O` gets `I1`. This describes the hardware of a 2-to-1 multiplexer.
Example 3: A Simple D-Flip-Flop (Sequential Logic)
Sequential logic, which describes elements with memory (like flip-flops and registers), is typically implemented using `process` statements. A `process` executes its statements sequentially, but the process itself is concurrent with other processes or concurrent statements.
```vhdl
library ieee;
use ieee.std_logic_1164.all;
entity D_Flip_Flop is
Port ( Clk, D : in std_logic;
Q : out std_logic );
end D_Flip_Flop;
architecture Behavioral of D_Flip_Flop is
begin
-- Process for sequential logic
process(Clk) -- Sensitivity list: process react only to changes in Clk
begin
if rising_edge(Clk) then -- Execute on the rising edge of the clock
Q <= D; -- Non-blocking assignment for sequential logic
end if;
end process;
end Behavioral;
```
- `process(Clk)`: The process is sensitive only to changes in the `Clk` signal.
- `if rising_edge(Clk) then ... end if;`: This condition ensures that the assignment `Q <= D;` only happens when the clock signal transitions from '0' to '1'. This is how a D-flip-flop works.
- `Q <= D;`: This is a **non-blocking assignment**. It means the value of `D` is scheduled to be assigned to `Q` at the end of the current simulation cycle, which is crucial for correct sequential behavior.
---

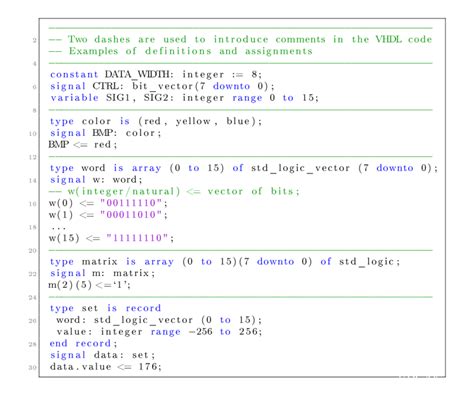

Data Types and Operators: The Building Blocks
VHDL offers various data types to represent different kinds of signals. `std_logic` is for single bits, while `std_logic_vector` is for buses of bits. For arithmetic, you'll often use `numeric_std` library.
Example 4: A 4-bit Adder
```vhdl
library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all; -- For arithmetic operations
entity Adder_4_bit is
Port ( A, B : in std_logic_vector(3 downto 0);
Sum : out std_logic_vector(3 downto 0);
Cout : out std_logic );
end Adder_4_bit;
architecture Behavioral of Adder_4_bit is
signal Temp_Sum : unsigned(4 downto 0); -- Internal signal to hold sum with carry
begin
-- Convert std_logic_vector to unsigned for arithmetic
Temp_Sum <= unsigned(A) + unsigned(B);
-- Assign results back to output ports
Sum <= std_logic_vector(Temp_Sum(3 downto 0));
Cout <= Temp_Sum(4);
end Behavioral;
```
- `std_logic_vector(3 downto 0)`: Defines a 4-bit wide bus.
- `use ieee.numeric_std.all;`: This library provides `unsigned` and `signed` types for arithmetic.
- `unsigned(A) + unsigned(B);`: `std_logic_vector` cannot be directly added. We cast them to `unsigned` for addition, which returns an `unsigned` result. `Temp_Sum` needs to be 5 bits wide to capture a potential carry-out.
- `Sum <= std_logic_vector(Temp_Sum(3 downto 0));`: The lower 4 bits of the `Temp_Sum` are cast back to `std_logic_vector` for the `Sum` output.
- `Cout <= Temp_Sum(4);`: The most significant bit of `Temp_Sum` is the carry-out.
---
Practical Tips for Effective VHDL Learning
1. **Start Small and Build Up:** Don't try to design a complex system immediately. Master individual components (gates, flip-flops, adders) before combining them.
2. **Simulate, Simulate, Simulate:** VHDL code is not software; it describes hardware. The only way to verify your design works as intended is through rigorous simulation using a testbench. A testbench applies inputs and checks outputs.
3. **Understand the Hardware Implication:** Always visualize the physical hardware your VHDL code is describing. This mindset shift is crucial for avoiding common pitfalls.
4. **Leverage Online Resources and Communities:** Forums, documentation, and open-source projects are invaluable learning tools. Don't hesitate to search for examples or ask questions.
5. **Comment Your Code:** Good comments explain *why* something is done, not just *what* it does. This greatly improves readability and maintainability.
---
Common Mistakes to Avoid
- **Forgetting Sensitivity Lists:** In a `process`, if a signal that affects the process's output is omitted from the sensitivity list, the simulator might behave differently from synthesized hardware, leading to difficult-to-debug issues.
- **Unintended Latches:** In sequential logic (inside a `process`), if you don't assign a value to a signal under *all* possible conditions in an `if` or `case` statement, the synthesizer might infer a latch to hold its previous value, which is often not the desired behavior.
- **Mixing Concurrent and Sequential Mindsets:** Trying to apply software programming flow control (like loops that iterate many times in a single clock cycle) directly to VHDL will lead to non-synthesizable or inefficient hardware.
- **Incorrect Data Type Usage:** Using `integer` for large ranges or arithmetic without proper type conversions can lead to issues during synthesis, as `integer` ranges are typically much larger than practical hardware bit-widths. Always prefer `std_logic_vector`, `unsigned`, or `signed` for synthesizable logic.
- **Not Writing Testbenches:** The most common and detrimental mistake. Without a testbench, you have no way to verify your design's correctness before synthesis.
---
Expert Recommendations and Professional Insights
- **Prioritize Readability and Maintainability:** Well-structured, commented, and consistently formatted VHDL code is easier to debug, modify, and integrate into larger projects. This saves significant time in the long run.
- **Embrace Modular Design:** Break down complex systems into smaller, manageable, and reusable VHDL entities. This promotes hierarchy, simplifies testing, and allows for parallel development.
- **Utilize Version Control:** For any serious project, use Git or a similar version control system. It's indispensable for tracking changes, collaborating with teams, and reverting to previous stable states.
- **Master Your Toolchain:** Get comfortable with your chosen VHDL simulator (e.g., ModelSim, GHDL) and synthesis tool (e.g., Vivado, Quartus). Understanding their quirks and error messages will significantly speed up your development process.
- **Think Synchronously:** For robust and predictable designs, aim for synchronous logic wherever possible. Asynchronous logic can be prone to timing issues and is generally harder to verify.
---
Conclusion
Learning VHDL by example is an incredibly effective way to bridge the gap between theory and practical application. By dissecting real-world code snippets, you gain an intuitive understanding of how VHDL describes actual hardware components. We've explored the fundamental concepts of entities, architectures, concurrent and sequential logic, and data types, all through practical examples.
Remember, the journey to VHDL proficiency is iterative. Start with simple designs, simulate diligently, understand the hardware implications of your code, and learn from common mistakes. Armed with these examples and insights, you're well-equipped to design, simulate, and synthesize your own digital circuits with confidence. Happy designing!
