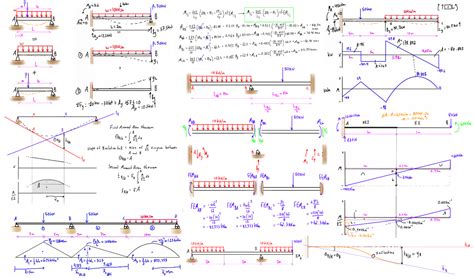

# 7 Advanced Strategies for Mastering Structural and Stress Analysis
Structural and stress analysis forms the bedrock of engineering design, ensuring the safety, performance, and durability of everything from aerospace components to civil infrastructure. While fundamental linear static analysis is crucial, experienced engineers often encounter complex scenarios that demand a deeper dive into advanced techniques. This article is tailored for seasoned professionals seeking to elevate their simulation capabilities, offering a fresh perspective on high-impact strategies that go beyond the basics to unlock unprecedented design insights and predictive power.
Here are seven advanced strategies to master structural and stress analysis, pushing the boundaries of traditional engineering simulation:
---
1. Unlocking True Behavior with Comprehensive Non-Linear Analysis
Beyond the simplifying assumptions of linearity, real-world structures often exhibit non-linear behavior. Mastering non-linear analysis is paramount for accurate predictions in challenging scenarios.
- **Material Non-Linearity:** Addresses situations where material properties change with stress or strain, such as plasticity (permanent deformation), creep (time-dependent deformation under constant load), or hyperelasticity (large, reversible deformations in materials like rubber).
- **Example:** Simulating the yielding and post-yield behavior of a metallic component under extreme load, or the large deformation of an elastomeric seal in a high-pressure environment.
- **Geometric Non-Linearity:** Accounts for large deformations where the structure's stiffness changes significantly as it deforms. This is critical for stability problems like buckling.
- **Example:** Analyzing the buckling of a slender column under compression, or the large deflection of a flexible wing structure.
- **Contact Non-Linearity:** Models the interaction between two or more bodies that come into contact, including friction, separation, and sliding.
- **Example:** Simulating the stress distribution in bolted joints, gear meshing, or the impact of components during operation.
**Advanced Insight:** The real challenge lies in identifying which type of non-linearity dominates and selecting appropriate solution algorithms (e.g., Newton-Raphson, arc-length methods) and convergence criteria to achieve robust and accurate results.
---
2. Advanced Dynamic Analysis: Transient & Random Vibration Mastery
While modal analysis identifies natural frequencies, many engineering challenges involve time-varying loads and stochastic excitations.
- **Transient Dynamic Analysis:** Simulates the time-dependent response of a structure to dynamic loads, providing stress, strain, and displacement values at specific points in time.
- **Example:** Analyzing the impact response of a vehicle chassis during a crash, the structural reaction to an explosive blast, or the dynamic forces on a machine component during rapid acceleration/deceleration.
- **Random Vibration Analysis:** Essential for structures subjected to non-deterministic, statistically described loads, such as turbulent wind, ocean waves, or engine vibrations. It uses Power Spectral Density (PSD) inputs to predict statistical responses (e.g., RMS stress, peak probability).
- **Example:** Assessing the fatigue life of an aircraft component exposed to engine broadband noise, or the vibrational response of an electronic circuit board in a randomly vibrating environment.
**Advanced Insight:** Successfully implementing these analyses requires a deep understanding of damping models, time step selection, and interpreting results in the frequency domain (for random vibration) to ensure reliability in unpredictable environments.
---
3. Fatigue and Fracture Mechanics: Predicting Lifespan and Failure Propagation
Designing for infinite life is often impractical. Advanced engineers predict finite life and potential crack propagation.
- **High-Cycle and Low-Cycle Fatigue (HCF/LCF):** Moves beyond simple stress limits to predict component lifespan under repeated loading. HCF typically uses stress-life (S-N) curves, while LCF, involving plastic deformation, often relies on strain-life (ε-N) curves.
- **Example:** Predicting the operational lifespan of a turbine blade subjected to millions of stress cycles, or a pressure vessel undergoing fewer, but more intense, pressure fluctuations.
- **Linear Elastic Fracture Mechanics (LEFM) & Elastic-Plastic Fracture Mechanics (EPFM):** Analyzes the behavior of structures containing cracks. LEFM applies to brittle materials or small-scale yielding, using stress intensity factors (K). EPFM (e.g., J-integral, CTOD) is necessary for ductile materials where significant plastic deformation occurs at the crack tip.
- **Example:** Assessing the critical crack size in an aging aircraft fuselage, or determining the remaining life of a bridge girder with a detected flaw.
**Advanced Insight:** This requires meticulous material characterization, accurate load spectrum definition, and often involves specialized meshing techniques around potential crack initiation sites or existing flaws to capture stress singularities.
---
4. Topology Optimization & Generative Design for Performance-Driven Innovation
Moving beyond traditional design-then-validate, these techniques drive form and material distribution based on performance goals.
- **Topology Optimization:** An algorithmic process that determines the optimal material distribution within a defined design space for a given set of loads, boundary conditions, and performance objectives (e.g., maximize stiffness, minimize mass).
- **Example:** Designing a lightweight yet stiff aerospace bracket, optimizing the internal structure of a medical implant for biocompatibility and load-bearing, or creating a more efficient heat sink design.
- **Generative Design:** An iterative process that uses AI and machine learning algorithms to rapidly explore thousands of design variations, generating optimal solutions based on specified performance criteria, manufacturing constraints, and material choices.
- **Example:** Exploring novel lattice structures for additive manufacturing, or rapidly prototyping multiple design concepts for complex automotive components to achieve weight reduction and improved performance simultaneously.
**Advanced Insight:** The true value here is not just achieving lighter components, but discovering innovative, often organic, forms that are impossible to conceive with traditional design methods, leading to revolutionary product performance.
---
5. Multi-Physics Coupling: Holistic System Understanding
Many real-world engineering problems involve the interaction of multiple physical phenomena (e.g., thermal, fluid, electrical, structural).
- **Thermal-Structural Coupling:** Analyzes how temperature changes induce stresses and deformations, and vice versa.
- **Example:** Simulating thermal stresses in high-temperature engine components (e.g., turbine blades), or analyzing the deformation of a satellite structure due to solar radiation.
- **Fluid-Structure Interaction (FSI):** Models the complex interplay between a fluid flow and a deformable structure.
- **Example:** Assessing the aeroelastic flutter of an aircraft wing, analyzing the dynamic response of offshore risers to ocean currents, or optimizing the design of heart valves.
- **Electro-Thermal-Structural Coupling:** Critical for electronic components where electrical current generates heat, affecting structural integrity.
- **Example:** Analyzing the thermal expansion and stress in microelectronic packages due to Joule heating, which can lead to fatigue failure.
**Advanced Insight:** This strategy requires proficiency in multiple simulation domains and the ability to link them, often involving sophisticated co-simulation techniques or fully coupled solvers, providing a truly comprehensive understanding of system behavior.
---
6. Probabilistic Structural Analysis (PSA) and Reliability-Based Design
Deterministic safety factors can be overly conservative or insufficient. PSA quantifies uncertainty for more robust designs.
- **Quantifying Uncertainty:** Instead of fixed values, inputs like material properties, loads, and boundary conditions are treated as random variables with associated probability distributions.
- **Example:** Assessing the probability of failure of a structure under earthquake loads, where the intensity and frequency of ground motion are inherently uncertain.
- **Reliability-Based Design Optimization:** Integrates probabilistic methods into the design process to optimize for a target reliability level, leading to designs that are both safe and efficient.
- **Example:** Optimizing the dimensions of a critical bridge component to achieve a specific probability of survival over its design life, considering variations in material strength and traffic loads.
**Advanced Insight:** This approach moves beyond simply "safe" to "how safe," allowing engineers to make data-driven decisions on risk tolerance, optimize maintenance schedules, and design with a more realistic understanding of potential variability.
---
7. Advanced Material Modeling for Complex Behaviors
Many cutting-edge applications rely on materials with non-standard or highly anisotropic behaviors.
- **Composite Materials Analysis:** Accurately models the orthotropic or anisotropic properties of layered composites, including fiber orientation, ply stacking sequences, and failure criteria (e.g., Tsai-Wu, Hashin).
- **Example:** Designing and analyzing carbon fiber reinforced polymer (CFRP) aircraft wings or composite pressure vessels, where material properties vary significantly by direction.
- **Hyperelastic & Viscoelastic Models:** Essential for soft tissues, polymers, and rubbers, where stress is a non-linear function of large strain, and time-dependent behavior (viscoelasticity) is significant.
- **Example:** Simulating the mechanical response of medical implants (e.g., stents, prosthetic joints), or the long-term deformation of rubber seals in automotive applications.
- **User-Defined Material Models (UMAT/VUMAT):** For highly specialized or novel materials where standard library models are insufficient, requiring custom code to describe constitutive behavior.
- **Example:** Implementing a new shape memory alloy model for smart structures, or a specific ceramic material model under extreme thermal cycling.
**Advanced Insight:** This area demands a strong understanding of material science, experimental data interpretation, and often involves significant validation against test results to ensure the model accurately reflects the material's complex response.
---
Conclusion
The landscape of structural and stress analysis is continuously evolving, pushing engineers to adopt more sophisticated techniques to meet the demands of innovation, performance, and safety. Mastering these advanced strategies – from comprehensive non-linear and dynamic analyses to multi-physics coupling and probabilistic design – empowers experienced professionals to move beyond basic simulations. By embracing these cutting-edge methodologies, engineers can gain deeper insights into complex system behaviors, optimize designs for unprecedented performance, predict failures with greater accuracy, and ultimately drive the next generation of robust and reliable products and structures. Continuous learning and proficiency in advanced structural analysis software are key to staying at the forefront of engineering excellence.
