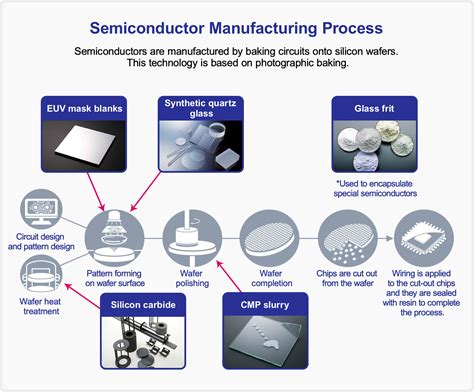

# The Invisible Architects: Unveiling the Precision of Semiconductor Device Fabrication
From the smartphone in your pocket to the advanced systems powering AI and autonomous vehicles, semiconductors are the silent orchestrators of our digital world. These minuscule marvels, often no bigger than a fingernail, encapsulate billions of transistors, each performing a critical function. But how are these intricate microscopic cities built? The answer lies in the highly complex, multi-stage **semiconductor device fabrication process** – an astounding feat of engineering that demands unparalleled precision, unwavering quality control, and an environment cleaner than a surgical operating room. This article delves into the meticulous steps that transform raw silicon into the intelligent chips that define modern technology, emphasizing the best practices that drive this critical industry.
The Foundation: From Raw Silicon to Pristine Wafers
The journey of a semiconductor device begins not in a factory, but in the earth, with one of the most abundant elements: silicon. However, the silicon used in chip manufacturing is far from its natural, impure state.
The first critical step involves purifying silicon to an extraordinary degree – often 99.9999999% pure, known as "nine nines" purity. This ultra-pure silicon is then melted and carefully grown into large, single-crystal cylindrical ingots using methods like the Czochralski process. Any impurity at this stage can lead to catastrophic defects later in the fabrication process, underscoring the absolute necessity of rigorous material quality control.
These ingots are then precisely sliced into thin, circular discs called **silicon wafers**. These wafers undergo extensive grinding, lapping, and chemical-mechanical polishing (CMP) to achieve an atomically flat, mirror-like surface. The surface quality is paramount, as even nanoscale imperfections can disrupt the delicate patterning that follows. After polishing, the wafers are subjected to an intensive cleaning regimen, often involving multiple chemical baths and deionized water rinses, to remove any residual contaminants. This initial preparation sets the stage for the billions of microscopic features to be built upon.
Building Layers: Photolithography and Etching – The Art of Miniaturization
With a pristine wafer in hand, the real magic of miniaturization begins. This involves repeatedly adding and removing layers of material, using light to define intricate patterns.
**Photolithography** is the cornerstone of this patterning process, akin to a highly advanced photographic technique. A photosensitive material called photoresist is applied to the wafer. A mask, containing the desired circuit pattern, is then placed over the photoresist, and ultraviolet (UV) light is shone through it. The exposed areas of the photoresist undergo a chemical change, making them either soluble or insoluble to a developer solution. After development, the pattern from the mask is transferred onto the photoresist layer, creating a stencil on the wafer surface. The precision required here is phenomenal; modern chips utilize Extreme Ultraviolet (EUV) lithography to print features just a few nanometers wide, pushing the boundaries of physics.
Following lithography, the process of **etching** removes unwanted material from the wafer, using the photoresist as a protective barrier. Etching can be done via wet chemical solutions, but for the fine geometries of modern chips, dry etching, particularly plasma etching, is preferred. In plasma etching, reactive gases are ionized to create a plasma, which then selectively removes material with atomic-level precision. This iterative cycle of deposition, lithography, and etching is repeated dozens, sometimes hundreds, of times, building up the complex, multi-layered structure of an integrated circuit. Each layer adds a new dimension to the chip's functionality, demanding flawless execution at every turn.
Doping and Deposition: Tailoring Electrical Properties and Adding Functionality
Beyond patterning, the electrical characteristics of the silicon must be precisely engineered, and various materials need to be added to create functional components.
**Doping** is the controlled introduction of specific impurity atoms (dopants) into the silicon crystal lattice to alter its electrical conductivity. For instance, adding boron creates p-type silicon (with a deficiency of electrons), while adding phosphorus or arsenic creates n-type silicon (with an excess of electrons). This precise control over charge carriers is fundamental to creating transistors, diodes, and other active components. The most common method for doping is ion implantation, where dopant ions are accelerated to high energies and precisely embedded into specific regions of the wafer. The depth and concentration of these implants are meticulously controlled to achieve desired electrical properties.
Simultaneously, various materials are added to the wafer through **thin film deposition** processes. These films can be insulators (like silicon dioxide or high-k dielectrics), conductors (like tungsten or copper), or even other semiconductor materials. Common deposition techniques include Chemical Vapor Deposition (CVD), where gases react on the wafer surface to form a solid film, and Physical Vapor Deposition (PVD), such as sputtering, where atoms are ejected from a target material and deposited onto the wafer. These deposited layers form gates, dielectrics, and, crucially, the interconnects – the microscopic "wires" that link billions of transistors together, forming the vast electrical network of the chip.
The Unseen Guardians: Quality Control and Cleanroom Environments
The incredible complexity and minuscule feature sizes of semiconductor devices necessitate an uncompromising approach to quality control and environmental purity.
The entire fabrication process takes place within highly specialized facilities known as **cleanrooms**. These environments are meticulously controlled to minimize airborne particles, temperature fluctuations, and humidity. Cleanrooms are classified by the maximum number of particles per cubic foot; modern fabs often operate at ISO Class 1, meaning fewer than 10 particles (0.1µm or larger) per cubic meter. Personnel wear full-body "bunny suits" to prevent contamination from skin flakes or dust. Robotic systems are extensively used to transfer wafers between processing tools, further reducing human interaction and the risk of contamination, which is the single largest threat to yield in chip manufacturing.
Throughout the entire fabrication flow, rigorous **in-process inspection and metrology** are performed at every critical step. Advanced optical systems, electron microscopes, and electrical testers scan wafers for defects, measure film thicknesses, verify pattern alignment, and check electrical parameters. This continuous monitoring ensures that any deviations from specifications are detected early, preventing costly errors down the line and maximizing the number of functional chips (yield) produced from each wafer. This relentless pursuit of perfection is a hallmark of the semiconductor industry, where even a single misplaced atom can render a device useless.
Assembly, Packaging, and Testing: The Final Frontier
Once all the intricate layers are built on the wafer, the fabrication journey nears its end, transitioning from wafer processing to individual chip preparation.
First, the large wafer, containing hundreds or thousands of individual integrated circuits (dies), is meticulously cut into separate chips using a process called **wafer dicing**. This involves using a high-precision saw or laser to slice through the wafer, separating each functional die. Each tiny chip is then carefully picked up and prepared for packaging.
**Semiconductor packaging** is the crucial step of encapsulating the delicate silicon die in a protective casing. The package serves multiple functions: it protects the chip from physical damage and environmental factors, provides a means for the chip to connect to external circuitry (e.g., a circuit board), and helps dissipate heat. Common packaging techniques include wire bonding, where tiny gold wires connect the chip's pads to the package leads, or flip-chip technology, where solder bumps directly connect the chip to the package. The choice of package depends on the chip's application, performance requirements, and cost considerations.
Finally, after packaging, each individual chip undergoes a series of comprehensive **final tests**. These tests verify the chip's electrical functionality, performance, and reliability under various conditions. Only chips that pass all stringent tests are deemed ready for market. This extensive testing ensures that end-users receive fully functional and reliable devices, upholding the industry's commitment to quality.
Conclusion
The **semiconductor device fabrication process** is an extraordinary testament to human ingenuity and precision engineering. It is a multi-billion-dollar dance of chemistry, physics, and advanced manufacturing, performed in environments of unprecedented cleanliness. From the purification of raw silicon to the intricate layering of billions of transistors and the final rigorous testing, every step demands meticulous attention to detail and adherence to the highest quality standards. This invisible architecture is the bedrock of our digital age, constantly evolving and pushing the boundaries of what's possible, ensuring that the next generation of smart devices and transformative technologies continues to emerge from these high-tech foundries.
