# Decoding the Future: A Comprehensive Guide to Semiconductor Advanced Packaging
In the rapidly evolving world of electronics, the pursuit of smaller, faster, and more powerful devices is relentless. While traditional chip fabrication continues to push the boundaries of transistor density, a parallel revolution is unfolding in how these incredibly complex silicon dies are packaged. **Semiconductor Advanced Packaging** is no longer just about protecting the chip; it’s a critical enabler of next-generation performance, power efficiency, and miniaturization.
This guide will demystify the intricacies of advanced packaging, explaining its core technologies, practical applications, and the strategic advantages it offers. Whether you’re an engineer, a product manager, or simply curious about the cutting edge of electronics, you'll gain actionable insights into leveraging these transformative innovations.
What is Semiconductor Advanced Packaging?
Traditionally, a semiconductor package primarily served to protect the delicate silicon die, provide electrical connections to the outside world, and dissipate heat. As device complexity grew and performance demands escalated, conventional 2D packaging (where chips are placed side-by-side on a substrate) began hitting fundamental limits in terms of interconnect length, bandwidth, and form factor.
Advanced packaging refers to a suite of innovative technologies that go beyond these traditional methods. Its primary goal is to integrate multiple disparate components—logic, memory, sensors, passives—into a single, compact, and high-performance package. This approach enables:
- **Improved Performance:** Shorter electrical paths lead to faster data transfer and reduced latency.
- **Enhanced Power Efficiency:** Less energy lost over shorter interconnects.
- **Significant Miniaturization:** Smaller overall footprint for devices.
- **Heterogeneous Integration:** Combining chips manufactured with different processes or materials (e.g., a logic chip on 5nm with an analog chip on 28nm).
- **Cost Optimization:** By integrating components that might otherwise be separate, system-level costs can be reduced.
Key Types of Advanced Packaging Technologies
The advanced packaging landscape is diverse, each technology offering unique advantages for specific applications.
2.5D Packaging: The Interposer Advantage

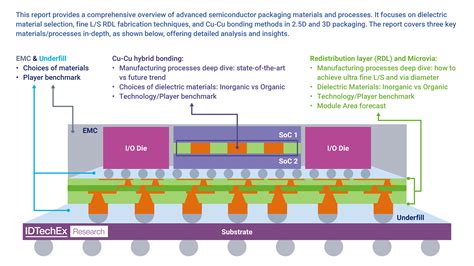

2.5D packaging bridges the gap between traditional 2D and full 3D stacking. It involves placing multiple dies (e.g., a CPU and High Bandwidth Memory - HBM) side-by-side on a silicon or organic **interposer**. This interposer acts as a high-density wiring substrate, providing extremely short and numerous connections between the dies, which are then connected to the main package substrate.
- **Practical Use:** High-performance computing (HPC), GPUs, and networking processors that require immense bandwidth between processing units and memory. HBM memory modules are a prime example.
3D Packaging: True Vertical Integration
3D packaging takes integration to the next level by vertically stacking multiple active dies on top of each other. The critical enabler here is **Through-Silicon Vias (TSVs)** – tiny vertical electrical connections that pass directly through the silicon dies, creating incredibly short interconnects.
- **Practical Use:** 3D NAND flash memory (common in SSDs and mobile devices), and some advanced System-on-Chips (SoCs) where space and speed are paramount.
Fan-Out Wafer-Level Packaging (FOWLP)
FOWLP begins by manufacturing individual dies on a wafer. After separation, these dies are re-embedded into a new "reconstituted wafer" with extra space around them. This extra space allows for the "fan-out" of electrical connections beyond the original die boundaries, creating a larger area for I/O pads. This eliminates the need for a separate substrate in many cases.
- **Practical Use:** Mobile processors, wearables, and connectivity modules (e.g., Wi-Fi, Bluetooth) where ultra-thin profiles, improved thermal performance, and lower cost than interposer-based solutions are critical.
System-in-Package (SiP)
SiP is less about the physical stacking of bare dies and more about the functional integration of diverse components into a single, compact package. An SiP can contain multiple packaged chips (e.g., a microcontroller, a memory chip, a sensor, and passive components) along with bare dies, all interconnected within a single module.
- **Practical Use:** Smartwatches, IoT devices, medical implants, and RF modules. Apple's SiP for its Watch series is a well-known example, integrating an entire system into a tiny footprint.
Why Advanced Packaging Matters: Practical Applications & Benefits
The adoption of advanced packaging is driven by compelling practical benefits:
- **Breaking the Memory Wall:** With 2.5D and 3D stacking, memory can be placed much closer to the processor, dramatically increasing bandwidth and reducing latency for data-intensive applications like AI/ML.
- **Enabling Ultra-Compact Devices:** SiP and FOWLP are key to shrinking smartphones, wearables, and IoT devices, allowing for more features in smaller form factors.
- **Extending Moore's Law:** As scaling transistors becomes increasingly challenging and expensive, advanced packaging offers an alternative path to performance gains by integrating more functional units into a single package.
- **Improving Power Delivery Networks:** Shorter, denser interconnections reduce resistive losses, leading to more power-efficient systems, crucial for battery-powered devices and data centers.
- **Facilitating Heterogeneous Integration:** Design flexibility to combine best-in-class components from different foundries or process nodes, optimizing for performance, power, and cost at a system level.
Practical Tips for Implementing Advanced Packaging Strategies
Integrating advanced packaging into your product roadmap requires foresight and collaboration.
1. **Start Early with Co-Design:** Don't treat packaging as an afterthought. Engage packaging engineers, material scientists, and test engineers from the very beginning of the chip design cycle. Co-design of chip and package is paramount for optimal performance and cost.
2. **Prioritize Thermal Management:** With stacked dies and higher power densities, heat dissipation becomes a critical challenge. Design for robust thermal solutions (e.g., microfluidic cooling, advanced TIMs) from day one.
3. **Invest in Design for Testability (DfT):** Testing multiple dies in a complex 3D or 2.5D stack is significantly harder than testing individual chips. Implement comprehensive DfT strategies to ensure reliable and cost-effective testing.
4. **Understand Your Supply Chain:** Advanced packaging often requires specialized materials, equipment, and manufacturing processes. Secure reliable suppliers and consider redundancy.
5. **Conduct a Thorough Cost-Benefit Analysis:** While advanced packaging can be more expensive per chip than traditional methods, evaluate the overall system-level benefits in terms of performance, power, size, and time-to-market. The higher package cost might be justified by a superior end product.
Common Mistakes to Avoid
Navigating the complexities of advanced packaging can be fraught with pitfalls.
- **Underestimating Thermal Challenges:** Assuming traditional cooling solutions will suffice for integrated stacks is a recipe for failure. Thermal runaway can severely limit performance and reliability.
- **Ignoring Reliability and Rework:** Advanced packages are inherently more complex. Reworking a faulty die in a stacked configuration is often impossible or prohibitively expensive. Robust design and manufacturing processes are essential.
- **Lack of Collaboration Between Teams:** Siloed design, packaging, and test teams will lead to suboptimal solutions, missed opportunities, and costly redesigns. Foster cross-functional communication.
- **Over-Engineering for the Application:** Not every product needs the absolute bleeding edge of packaging. Evaluate if a simpler, more cost-effective solution (e.g., advanced 2D or basic FOWLP) might suffice for your performance and cost targets.
- **Failing to Plan for Future Upgrades:** Consider the roadmap for your product. Can your chosen packaging platform accommodate future generations of chips or increased integration density?
Conclusion
Semiconductor advanced packaging is more than just an incremental improvement; it's a paradigm shift that is fundamentally reshaping how electronic systems are designed and manufactured. By enabling unprecedented levels of performance, power efficiency, and miniaturization, these technologies are critical drivers for innovation across every sector, from AI and HPC to mobile and IoT.
Understanding and strategically leveraging 2.5D, 3D, FOWLP, and SiP technologies is no longer optional but essential for staying competitive in today's fast-paced electronics industry. By embracing early co-design, meticulous thermal management, and robust testing strategies, companies can unlock the full potential of advanced packaging and deliver the next generation of groundbreaking electronic products.
