# Demystifying S-Parameters for Signal Integrity: A Practical & Budget-Friendly Guide
In the fast-paced world of high-speed digital design, signal integrity (SI) is paramount. As data rates climb, even minor imperfections in your PCB traces, connectors, or cables can wreak havoc on signal quality, leading to costly re-spins and project delays. This is where S-parameters come in – a powerful, yet often intimidating, tool for understanding and optimizing high-frequency performance.
This comprehensive guide will demystify S-parameters, explaining what they are, why they're critical for signal integrity, and how to interpret them without needing a Ph.D. in RF engineering. Crucially, we’ll focus on practical, actionable insights and budget-friendly strategies to leverage S-parameters effectively, helping you achieve robust designs without breaking the bank.
What Are S-Parameters, Anyway?
At its core, S-parameters (Scattering Parameters) describe how an electrical network responds to high-frequency signals. Unlike traditional impedance (Z) or admittance (Y) parameters, which are difficult to measure accurately at high frequencies, S-parameters quantify the energy *scattered* (reflected or transmitted) when a signal interacts with a device or interconnect.
Think of it like this: when a high-speed signal hits a component, some of its energy bounces back (reflection), and some passes through (transmission). S-parameters measure these reflections and transmissions across a range of frequencies, providing a comprehensive "fingerprint" of your system's performance. They are typically measured using a Vector Network Analyzer (VNA) and are frequency-dependent, making them indispensable for analyzing components operating at RF, microwave, and high-speed digital frequencies.
Why S-Parameters are Indispensable for Signal Integrity
S-parameters offer a window into the hidden world of high-speed signal behavior, transforming guesswork into informed decisions.
Characterizing Interconnects with Precision
From a simple PCB trace to complex multi-pin connectors and cables, S-parameters allow you to precisely characterize how these passive elements affect your signals. They reveal:- **Insertion Loss (S21, S12):** How much signal strength is lost as it travels through the interconnect. High insertion loss degrades signal quality.
- **Return Loss (S11, S22):** How much signal energy is reflected back due to impedance mismatches. High return loss indicates poor impedance control.
- **Crosstalk (S31, S41, etc.):** In multi-port networks, S-parameters can quantify how much signal couples from one line to another.
Predicting System Behavior

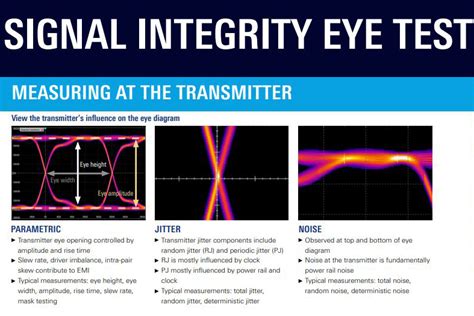

By cascading the S-parameters of individual components (e.g., a driver, PCB trace, connector, and receiver), you can accurately simulate the end-to-end performance of an entire high-speed channel. This allows you to predict eye diagrams, jitter, and overall signal quality before committing to expensive prototypes.Identifying Root Causes of SI Issues
When faced with signal integrity problems, S-parameters are a diagnostic powerhouse. They can pinpoint exactly where reflections or excessive losses are occurring, helping you identify problematic vias, poorly designed impedance transitions, or underperforming components.Decoding S-Parameter Plots: What to Look For
S-parameter data is typically presented as magnitude (in dB) and phase across a frequency range. For a common 2-port network (like a single trace or cable), you'll primarily encounter four parameters:
- **S11 (Input Reflection Coefficient):** Measures the reflection at Port 1.
- **S21 (Forward Transmission Coefficient):** Measures the signal transmitted from Port 1 to Port 2.
- **S22 (Output Reflection Coefficient):** Measures the reflection at Port 2.
- **S12 (Reverse Transmission Coefficient):** Measures the signal transmitted from Port 2 to Port 1.
For SI applications, S11 and S21 are often the most critical.
Reflection (S11, S22): The Impedance Mismatch Indicator
- **Interpretation:** A low magnitude (e.g., below -10 dB, ideally -15 dB or lower) across your operating bandwidth indicates good impedance matching.
- **What to look for:** Spikes or high magnitudes in S11 suggest impedance discontinuities or resonances, which will cause signal reflections and degrade eye openings. A flat, low S11 is the goal.
Transmission (S21, S12): The Signal Loss Metric
- **Interpretation:** A high magnitude (close to 0 dB, but always negative due to loss) across your operating bandwidth signifies good signal transmission.
- **What to look for:** A dropping magnitude with increasing frequency indicates insertion loss – the signal is being attenuated. Excessive drop-offs or sharp dips mean significant signal loss, which can close your eye diagram. A high, relatively flat S21 (within acceptable loss limits) is desired.
Cost-Effective Approaches to S-Parameter Analysis
Accessing S-parameter analysis doesn't always require a six-figure budget. Smart strategies can yield significant results.
Leverage Open-Source and Free Tools
- **Data Viewers:** Many EDA tools offer basic S-parameter viewers. For standalone viewing, search for "Touchstone file viewer" – several free options exist that allow you to plot .sNp files.
- **Scripting for Analysis:** If you have S-parameter data, basic analysis (e.g., calculating differential S-parameters, TDR from S-parameters) can be done with Python libraries like `skrf` (scikit-rf) or MATLAB/Octave scripts. This is powerful for custom post-processing.
Smart Measurement Strategies
While a high-end VNA is expensive, consider these alternatives:- **Rent or Lease:** For specific projects, renting a VNA for a week or a month can be far more cost-effective than purchasing.
- **NanoVNA for Preliminary Checks:** For lower-frequency or less critical applications, a budget-friendly nanoVNA can provide basic S-parameter insights. Understand its limitations in terms of frequency range, dynamic range, and accuracy, but it's excellent for learning and initial diagnostics.
- **Partner with Labs/Universities:** Many university labs or contract test houses offer VNA measurement services at competitive rates.
Focus on Critical Paths & Design for Manufacturability
- **Prioritize:** Don't measure everything. Focus your analysis on the highest-speed interfaces, longest traces, and most complex interconnects where SI issues are most likely to arise.
- **Good Design Practices:** The most cost-effective S-parameter "solution" is to design well from the outset. Implement controlled impedance, proper terminations, minimize via stubs, and follow stackup best practices. This reduces the *need* for extensive post-mortem S-parameter analysis.
Practical Applications & Use Cases
S-parameters are not just theoretical; they have direct, tangible applications:
- **Via Optimization:** Analyze S-parameters of different via structures (e.g., with and without back-drilling, varying anti-pad sizes) to find the one with minimal reflection and loss for your operating frequency.
- **Connector Characterization:** Ensure your chosen connectors maintain signal integrity. S-parameters can reveal if a connector is adding excessive loss or reflections at your target data rates.
- **Cable Selection:** Compare the S-parameters of various cables to select the one offering the best balance of insertion loss and return loss for your application, preventing costly over-specification or under-performance.
- **Power Delivery Network (PDN) Analysis:** While PDN typically uses Z-parameters, S-parameters can be measured and then converted to Z-parameters to characterize the impedance of your PDN at high frequencies, identifying resonances that could affect SI.
Common Mistakes to Avoid
Even with the best tools, missteps can lead to flawed analysis.
- **Ignoring Calibration:** Proper VNA calibration (SOLT, TRL, etc.) is absolutely critical. Without it, your measurements are meaningless.
- **Misinterpreting Plots:** Don't confuse reflection with transmission. A low magnitude for S11 is good, but a low magnitude for S21 is bad!
- **Frequency Range Mismatch:** Ensure your S-parameter data covers the full bandwidth relevant to your signal's harmonics. If your clock is 1 GHz, you need to analyze well beyond 1 GHz (e.g., 3rd or 5th harmonic).
- **Assuming Ideal Behavior:** Real-world components always have parasitics. S-parameters capture these non-idealities, so don't assume your traces are perfect.
- **Over-reliance on Simulation Without Validation:** Simulations are powerful, but physical measurements (even budget-friendly ones) are essential to validate your models and catch unexpected real-world effects.
- **Neglecting Time-Domain Insight:** S-parameters are frequency-domain. For SI, often you need time-domain views (like TDR/TDT). Fortunately, most S-parameter tools can convert frequency-domain S-parameters to time-domain responses.
Conclusion
S-parameters are an indispensable tool for anyone serious about signal integrity in high-speed digital design. By understanding their fundamentals, learning to interpret their plots, and employing cost-effective strategies for analysis, you gain unparalleled insight into your system's performance. Leveraging S-parameters empowers you to make informed design decisions, diagnose tricky SI issues, and ultimately deliver robust, reliable products, all while optimizing your budget and avoiding costly design iterations. Embrace S-parameters – your high-speed designs will thank you.
