# Mastering Stability and Efficiency: An Analytical Deep Dive into Process Control Basics
In the intricate world of modern industry, where precision, safety, and efficiency are paramount, the concept of process control stands as a fundamental pillar. Far from being a mere technicality, effective process control is the strategic backbone enabling consistent product quality, optimized resource utilization, and safe operational environments across sectors ranging from manufacturing and chemicals to energy and pharmaceuticals. This article dissects the core principles of process control, examining its foundational mechanisms, diverse strategies, and the profound implications for industrial success.
The Strategic Imperative of Process Control
At its heart, process control involves manipulating a process to maintain specific conditions or achieve desired outputs. Imagine a chemical reactor needing to maintain a precise temperature for an optimal reaction, or a refinery requiring constant pressure to prevent hazardous situations. Without active control, minor disturbances – fluctuations in raw material quality, ambient temperature changes, or varying demand – could lead to massive inefficiencies, safety risks, or product defects.
The significance of robust process control is multi-faceted:- **Ensuring Consistency:** Guarantees uniform product quality, reducing variability and waste.
- **Optimizing Performance:** Maximizes throughput, minimizes energy consumption, and reduces raw material usage.
- **Enhancing Safety:** Prevents deviations that could lead to dangerous conditions, protecting personnel and assets.
- **Reducing Costs:** Lower operating expenses through efficiency gains and reduced rework or scrap.
- **Facilitating Compliance:** Helps meet regulatory standards for emissions, product specifications, and safety.
Unpacking the Feedback Loop: The Foundational Mechanism
The most ubiquitous and fundamental approach to process control is the **feedback control loop**. This mechanism continuously monitors a process variable, compares it to a desired setpoint, and then adjusts a manipulated variable to correct any deviation.
The Anatomy of a Control System

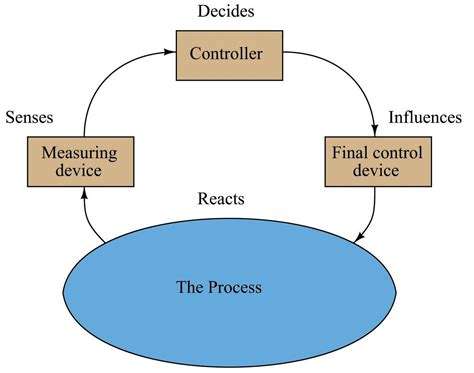

Every feedback control system comprises four essential components: 1. **Sensor (Measurement):** Detects the current state of the process variable (e.g., thermometer for temperature, pressure transducer for pressure). 2. **Controller (Decision):** Receives the measured value, compares it to the setpoint, calculates the required adjustment (error signal), and generates an output signal. 3. **Actuator (Manipulation):** A device that directly influences the process based on the controller's signal (e.g., control valve for flow, heater for temperature). 4. **Process:** The physical system or operation being controlled (e.g., a distillation column, a mixing tank, a furnace).Open-Loop vs. Closed-Loop Control: A Critical Distinction
Understanding the difference between open-loop and closed-loop control is crucial for appreciating the power of feedback.| Feature | Open-Loop Control System | Closed-Loop (Feedback) Control System |
| :------------ | :------------------------------------------------------- | :------------------------------------------------------------ |
| **Mechanism** | Pre-programmed action; output has no effect on input. | Measures output, compares to setpoint, adjusts input based on error. |
| **Feedback** | None | Present and integral to operation |
| **Complexity**| Simple, less expensive to implement | More complex, requires sensors and a control algorithm |
| **Accuracy** | Low, highly susceptible to disturbances | High, actively corrects for disturbances and process changes |
| **Robustness**| Poor against unknown disturbances or process variations | Excellent, self-correcting and adaptable |
| **Example** | A timed traffic light, a simple toaster | A thermostat, cruise control in a car, a reactor temperature controller |
While open-loop control is suitable for highly predictable processes with minimal disturbances, its inherent inability to detect or correct errors renders it impractical for most industrial applications where dynamic conditions are the norm. **Closed-loop control is the cornerstone of modern industrial automation** due to its inherent stability and accuracy.
Advanced Control Strategies: Beyond Simple Feedback
While the feedback loop is foundational, industrial processes often demand more sophisticated approaches.
PID Controllers: The Industry Workhorse
The Proportional-Integral-Derivative (PID) controller is by far the most widely used control algorithm. It calculates an error value as the difference between a measured process variable and a desired setpoint, then attempts to minimize this error by adjusting the process control inputs.- **Proportional (P):** Responds to the *current* error. Larger error means larger corrective action.
- **Integral (I):** Responds to the *accumulation* of past errors, eliminating steady-state offset (error that persists over time).
- **Derivative (D):** Responds to the *rate of change* of the error, anticipating future errors and dampening oscillations.
**Pros:** Versatile, robust, and performs well for a wide range of processes.
**Cons:** Optimal tuning can be challenging, especially for highly non-linear or processes with significant time delays. An improperly tuned PID can lead to instability or sluggish response.
Feedforward Control: Proactive Disturbance Rejection
Unlike feedback control, which reacts to errors, feedforward control *anticipates* disturbances and takes corrective action *before* they affect the process variable. **Mechanism:** Measures a known disturbance variable (e.g., changes in raw material flow into a reactor) and adjusts the manipulated variable (e.g., heating power) to counteract its predicted effect. **Pros:** Faster response, can prevent deviations entirely, leading to tighter control. **Cons:** Requires an accurate model of the process and precise measurement of the disturbance. It cannot compensate for unmeasured disturbances or model inaccuracies, making it often a complementary strategy to feedback control.Cascade Control: Layered Precision
Cascade control involves two (or more) feedback loops where the output of the primary (master) controller adjusts the setpoint of a secondary (slave) controller. **Mechanism:** The master controller controls the primary process variable (e.g., reactor temperature) by manipulating the setpoint of the slave controller, which then controls a secondary variable (e.g., coolant flow rate). The slave loop is typically faster and helps reject disturbances acting directly on the secondary variable before they propagate to the primary variable. **Pros:** Improves disturbance rejection for the inner loop, provides faster response to inner-loop disturbances, and often improves overall control performance. **Cons:** More complex to design, implement, and tune, requiring two controllers and their respective sensors and actuators.Implications and Strategic Importance
The implications of robust process control extend far beyond mere operational stability:
- **Elevated Product Quality:** By maintaining tight control over critical parameters, companies can consistently produce products that meet stringent specifications, reducing scrap and rework costs.
- **Optimized Resource Utilization:** Precise control minimizes energy consumption, reduces the need for expensive raw materials, and lowers waste generation, directly impacting profitability and environmental sustainability.
- **Enhanced Operational Safety:** Automated control systems respond faster and more consistently than human operators to potential hazards, preventing excursions that could lead to equipment damage, spills, or accidents.
- **Data-Driven Innovation:** Modern control systems generate vast amounts of operational data. This data, when analyzed, provides invaluable insights for process optimization, predictive maintenance, and the development of next-generation AI-driven control strategies.
- **Competitive Advantage:** Companies with superior process control achieve higher throughput, lower operational costs, and greater product consistency, translating into a significant competitive edge in the market.
Conclusion: Driving Excellence Through Intelligent Control
Process control is not merely a technical discipline; it is a strategic imperative for any industrial enterprise aiming for sustained success. From the fundamental elegance of the feedback loop to the sophisticated layers of cascade and predictive strategies, the evolution of process control continues to empower industries to operate with unprecedented levels of precision, safety, and efficiency.
For businesses looking to thrive in an increasingly competitive landscape, the actionable insight is clear: invest in not just implementing, but continuously optimizing process control systems. This involves:- **Thorough System Design:** Selecting the right control strategy for specific process dynamics.
- **Expert Tuning:** Calibrating controllers for optimal performance, balancing responsiveness with stability.
- **Leveraging Data Analytics:** Utilizing operational data to identify bottlenecks, predict failures, and refine control algorithms.
- **Embracing Modernization:** Exploring advanced control techniques and digital transformation to unlock new levels of performance and responsiveness.
By understanding and strategically applying the basics of process control, industries can move beyond simple automation to achieve true operational excellence, ensuring resilience, profitability, and a sustainable future.
