# Unlocking Industrial Design: A Beginner's Journey into Piping and Instrumentation Diagram (P&ID) Development
Imagine trying to build a complex machine without a blueprint, or orchestrate a symphony without a score. In the world of industrial processes, from chemical plants to pharmaceutical facilities, such an endeavor would be not just difficult, but outright dangerous and inefficient. This is where Piping and Instrumentation Diagrams (P&IDs) become indispensable. More than just drawings, P&IDs are the universal language that translates intricate process designs into a clear, visual roadmap. For aspiring engineers, technicians, and project managers, understanding P&ID development is not merely a skill—it's a gateway to mastering the heartbeat of industrial operations. This article will guide you through the fundamentals, helping you embark on your journey to decipher and create these essential engineering documents.
What Exactly is a P&ID? A Core Definition

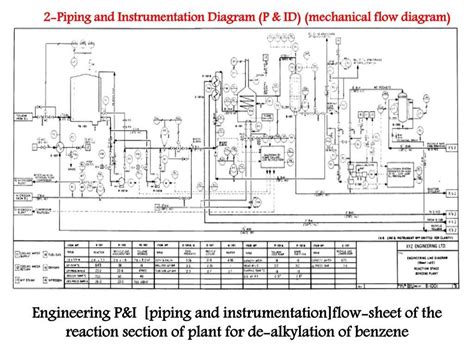

At its heart, a P&ID is a schematic diagram that shows the piping and process equipment together with the instrumentation and control devices. It’s a detailed graphical representation of a process plant, illustrating how process fluids flow through pipes, what equipment they pass through, and how the entire system is monitored and controlled. Unlike a simpler Process Flow Diagram (PFD), which offers a high-level overview, a P&ID dives into the granular details, providing critical information necessary for plant construction, operation, and maintenance.
Think of a P&ID as a comprehensive map of an industrial process. It doesn't just show roads; it shows every traffic light, every turn signal, every type of vehicle, and how they all interact to keep traffic flowing safely and efficiently. This detailed perspective is crucial for ensuring safety, optimizing performance, and facilitating communication among diverse teams—from chemical engineers to electricians and safety officers.
The Foundational Role of P&IDs in the Project Lifecycle
P&IDs are not static documents; they are living blueprints that evolve throughout a project's lifecycle, from conceptual design to commissioning and beyond. In the initial design phase, they serve as a critical tool for engineers to visualize and refine process concepts, identify potential hazards, and ensure compliance with regulatory standards. They are the primary source for developing control narratives, alarm philosophies, and operational procedures.
As a project progresses to the detailed engineering and procurement stages, P&IDs become the foundation for creating equipment specifications, instrument datasheets, and piping layouts. Contractors rely on them for accurate fabrication and installation. Post-construction, they remain vital for operator training, troubleshooting, maintenance planning, and any future plant modifications or expansions. Their accuracy is paramount, as discrepancies can lead to costly delays, safety incidents, or operational inefficiencies.
Deciphering the Language: Key Symbols and Conventions
To effectively read and develop P&IDs, one must understand their standardized symbolic language. Every line, shape, and letter holds specific meaning, governed by international standards such as ISA S5.1 and ISO 10628. These standards ensure that a P&ID developed in one part of the world can be universally understood by engineers globally, fostering clarity and preventing misinterpretations.
While the full spectrum of symbols is vast, beginners should focus on recognizing core categories:
- **Equipment Symbols:** Representing vessels, tanks, pumps, compressors, heat exchangers, and reactors. These often convey type and function.
- **Piping Lines:** Indicating process flow direction, line size, and material, distinguishing between main process lines, utility lines, and instrument lines.
- **Valve Symbols:** Showing various types of valves (gate, globe, ball, check, control) and their operational mechanism.
- **Instrumentation Symbols:** Representing sensors, transmitters, controllers, and final control elements. Circles often denote instruments, with letters indicating their function (e.g., "PT" for Pressure Transmitter, "FIC" for Flow Indicating Controller).
Understanding these fundamental symbols is like learning the alphabet of P&ID development. It allows you to begin translating the complex choreography of an industrial process into a visual narrative.
Getting Started: The P&ID Development Process for Beginners
Developing a P&ID from scratch might seem daunting, but a structured approach can simplify the task. For beginners, the focus should be on clarity and accuracy over excessive detail initially.
1. **Understand the Process Scope:** Clearly define what the P&ID needs to represent. What are the inputs, outputs, and main steps of the process? A simple block diagram or Process Flow Diagram (PFD) can be a great starting point.
2. **Sketch the Main Equipment:** Begin by drawing the primary vessels, reactors, and major pumps. Arrange them logically, mimicking the actual process flow.
3. **Draw Main Process Lines:** Connect the equipment with lines representing the primary process streams. Add arrows to indicate flow direction.
4. **Add Utility Lines and Minor Equipment:** Incorporate steam, cooling water, air lines, and smaller components like filters or strainers.
5. **Place Instrumentation and Controls:** Identify where measurements (temperature, pressure, flow, level) are needed and where control actions occur. Add appropriate instrument symbols and connect them to their respective control loops.
6. **Add Valves and Other Fittings:** Strategically place isolation valves, control valves, and other piping components for operation and maintenance.
7. **Annotate and Label:** Crucially, label everything clearly – equipment tags, line numbers (including size and material), instrument tags, and operational parameters. This provides the essential data that symbols alone cannot convey.
Remember, P&ID development is often iterative. Start simple, then gradually add layers of detail as your understanding of the process and P&ID conventions grows.
Essential Tools and Technologies for P&ID Creation
While a pencil and paper can suffice for initial sketches, modern P&ID development heavily relies on specialized software. These tools enhance accuracy, efficiency, and collaboration.
- **CAD Software (e.g., AutoCAD Plant 3D, SmartPlant P&ID):** These sophisticated platforms offer extensive libraries of standardized symbols, intelligent drafting features, and data management capabilities. They can automatically generate reports, check for consistency, and integrate with other engineering disciplines.
- **General Drawing Software (e.g., Microsoft Visio, Lucidchart):** For beginners or smaller projects, these more accessible tools provide basic symbol libraries and drawing functionalities. While they lack the advanced intelligence of dedicated CAD software, they are excellent for learning the ropes and creating clear, professional-looking diagrams.
Regardless of the tool, adherence to industry standards (like those from ISA and ISO) is paramount. These standards dictate not just symbols, but also naming conventions, line types, and general layout principles, ensuring consistency and readability across projects.
Common Pitfalls and Best Practices for Beginners
Embarking on P&ID development involves a learning curve. Being aware of common mistakes can help beginners navigate this process more smoothly.
- **Over-complication:** Trying to include too much detail too early can make the diagram cluttered and confusing. Start with the essentials and add layers incrementally.
- **Inconsistent Symbol Usage:** Deviating from established standards leads to misinterpretation. Always refer to standard symbol libraries.
- **Lack of Annotation:** A diagram without clear labels, tags, and notes is incomplete. Provide all necessary information that the symbols alone don't convey.
- **Ignoring Flow Direction:** Always use arrows to indicate the direction of process flow, which is fundamental to understanding the system's operation.
- **Neglecting Collaboration:** P&IDs are team documents. Involve process engineers, instrument specialists, and operators from the outset to ensure accuracy and buy-in.
Best practices include maintaining a consistent drawing style, using a grid for alignment, regularly reviewing and updating the P&ID as the design evolves, and always considering the end-user (e.g., operators, maintenance personnel) who will rely on the document.
Conclusion: Your Gateway to Industrial Clarity
Piping and Instrumentation Diagram development is a fundamental skill that underpins the successful design, construction, and operation of any industrial facility. For beginners, it might seem like a foreign language, but by understanding its core purpose, deciphering its standardized symbols, and following a structured development process, you can quickly gain proficiency. These living documents are far more than just drawings; they are the communicative backbone of industrial engineering, ensuring safety, efficiency, and seamless collaboration. Embrace the journey of learning P&IDs, and you'll unlock a deeper understanding of the complex, interconnected world of process industries. This foundational knowledge will undoubtedly serve as a powerful asset in your professional career.
