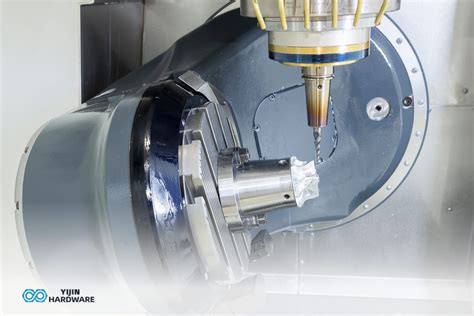

# Mastering Modern Manufacturing: Your Comprehensive Guide to Machining and CNC Technology
In the intricate world of modern manufacturing, the ability to transform raw materials into precision components is paramount. At the heart of this transformation lies machining, a fundamental process that has been revolutionized by Computer Numerical Control (CNC) technology. Whether you're a budding engineer, an aspiring machinist, or a business owner looking to optimize production, understanding machining and CNC is crucial.
This guide will demystify the core concepts of machining, explain the powerful capabilities of CNC technology, and provide practical insights into its real-world applications. You'll learn about the journey from design to finished part, discover essential tips for optimizing your processes, and identify common pitfalls to avoid, equipping you with actionable knowledge to implement immediately.
Understanding the Fundamentals of Machining
Before diving into the digital age, it's essential to grasp the foundational principles of machining.
What is Machining?
Machining is a subtractive manufacturing process where material is removed from a workpiece to create a desired shape and size. Unlike additive processes (like 3D printing), machining involves cutting, drilling, grinding, or shearing away excess material using various tools. This process is critical for achieving tight tolerances, smooth finishes, and complex geometries that other manufacturing methods can't match.
Common machining operations include:- **Turning:** Used to create cylindrical parts by rotating the workpiece against a stationary cutting tool (e.g., on a lathe).
- **Milling:** Involves rotating a multi-point cutting tool against a stationary or moving workpiece to create flat or contoured surfaces, slots, and holes.
- **Drilling:** Creating circular holes using a rotating drill bit.
- **Grinding:** Using an abrasive wheel to achieve very fine finishes and extremely precise dimensions.
Traditional vs. CNC Machining
Historically, machining was a highly skilled manual craft, relying on the operator's dexterity and experience to control machine tools. While traditional machining still has its place, it's largely been surpassed by CNC technology due to significant advantages:
| Feature | Traditional Machining | CNC Machining |
| :---------------- | :------------------------------------- | :------------------------------------------------- |
| **Control** | Manual, operator skill-dependent | Computer-programmed, automated |
| **Accuracy** | Good, but subject to human error | High, repeatable precision |
| **Repeatability** | Varies with operator | Excellent, consistent part-to-part |
| **Complexity** | Limited by manual dexterity | Capable of highly intricate geometries |
| **Speed** | Slower, especially for complex tasks | Faster, optimized tool paths |
| **Cost** | Lower initial machine cost | Higher initial machine cost, lower labor per part |
CNC machining combines the precision of computer control with the power of machine tools, offering unparalleled accuracy, speed, and consistency.
Diving Deep into CNC Technology
CNC technology is the backbone of modern precision manufacturing. Understanding its components and workflow is key to leveraging its full potential.
The Anatomy of a CNC Machine
A CNC machine is a sophisticated system comprising several critical components that work in harmony:- **Controller (The Brain):** Interprets G-code instructions and translates them into physical movements.
- **Drive System:** Motors (stepper or servo) and ball screws that move the machine axes with extreme precision.
- **Spindle:** Holds and rotates the cutting tool at specified speeds.
- **Cutting Tools:** A vast array of tools (end mills, drills, inserts) designed for specific materials and operations.
- **Workholding:** Devices like vises, chucks, or fixtures that securely hold the workpiece during machining.
- **Machine Frame:** The rigid structure that supports all components and maintains stability.
How CNC Works: From CAD to Part
The process of creating a part using CNC technology typically follows these steps:
1. **CAD (Computer-Aided Design):** Engineers design the part using 3D modeling software, creating a digital blueprint.
2. **CAM (Computer-Aided Manufacturing):** CAM software takes the CAD model and generates tool paths – the precise movements the cutting tool will make. This involves selecting tools, defining cutting parameters (feeds and speeds), and simulating the machining process.
3. **G-code Generation:** The CAM software translates the tool paths into G-code (and M-code), a standardized programming language that the CNC machine controller understands. G-code commands dictate movements, speeds, tool changes, and other machine functions.
4. **Machine Setup:** The operator sets up the workpiece, loads the correct tools, and sets work offsets.
5. **Machining:** The CNC machine executes the G-code, precisely cutting the material according to the program.
**Practical Tip:** Invest time in mastering your CAM software. A well-optimized tool path can significantly reduce machining time, improve surface finish, and extend tool life. Always simulate your tool paths before running them on the machine to catch potential collisions or errors.
Common CNC Machine Types
The world of CNC machines is diverse, each type specialized for different tasks:- **CNC Mills:** The most versatile, capable of creating complex 3D shapes. Available in 3-axis (X, Y, Z), 4-axis (adds rotation), and 5-axis configurations (adds two rotational axes for highly complex, single-setup machining).
- **CNC Lathes (Turning Centers):** Primarily for producing cylindrical parts with high precision. Many now include milling capabilities (live tooling) for combined operations.
- **CNC Routers:** Similar to mills but typically larger, designed for cutting softer materials like wood, plastics, and composites.
- **CNC Grinders:** Used for achieving extremely tight tolerances and fine surface finishes.
- **EDM (Electrical Discharge Machining):** Uses electrical sparks to erode material, ideal for hard-to-machine metals and intricate shapes.
Practical Applications and Real-World Impact
CNC technology has permeated nearly every industry, driving innovation and efficiency.
Industries Revolutionized by CNC
- **Aerospace:** Manufacturing lightweight, high-strength components for aircraft and spacecraft, requiring extreme precision and exotic materials.
- **Automotive:** Producing engine blocks, transmission components, molds for body panels, and prototyping new designs quickly.
- **Medical:** Creating intricate surgical instruments, prosthetics, and custom implants with biocompatible materials.
- **Consumer Electronics:** Machining precise housings for smartphones, laptops, and other devices, often from aluminum or plastics.
- **Tool & Die Making:** Fabricating molds, dies, and fixtures essential for mass production in various industries.
Tips for Optimizing Your CNC Machining Process
To get the most out of your CNC operations, consider these actionable strategies:
- **Tool Selection is Key:** Don't just grab any tool. Match the tool material (carbide, HSS), coating (TiN, AlTiN), and geometry (flute count, helix angle) to the workpiece material and desired operation. A specialized tool often outperforms a general-purpose one.
- **Rigid Workholding:** Any movement of the workpiece during machining will lead to inaccuracies, chatter, and potential tool breakage. Invest in high-quality vises, chucks, or design custom fixtures for complex parts.
- **Master Feeds and Speeds:** This is critical. Incorrect settings lead to poor surface finish, rapid tool wear, or even tool catastrophic failure. Use manufacturer recommendations as a starting point, then fine-tune based on material, machine rigidity, and desired outcome.
- **Effective Coolant Management:** Coolant lubricates the cut, dissipates heat, and flushes chips away. Ensure proper flow and concentration to prolong tool life and maintain part quality.
- **Preventive Maintenance:** Regularly clean your machine, check lubrication levels, inspect belts and bearings, and calibrate axes. A well-maintained machine is a reliable and accurate machine.
Navigating Common Challenges and Best Practices
Even with advanced technology, challenges arise. Knowing what to avoid and how to approach problems is crucial.
Common Mistakes to Avoid
- **Ignoring Tool Wear:** Running dull tools increases cutting forces, generates excessive heat, damages the workpiece, and can lead to tool breakage. Implement a tool life management system.
- **Inadequate Workholding:** A loose workpiece is a recipe for disaster. Always double-check clamping force and ensure the part is fully supported.
- **Incorrect Feed & Speed Calculations:** Guessing these parameters is costly. Use reliable calculators or software to determine optimal settings.
- **Overlooking Safety Protocols:** CNC machines are powerful and potentially dangerous. Always wear appropriate PPE, keep guards in place, and never bypass safety interlocks.
- **Skipping Simulation & Verification:** Running a program without simulating it first can lead to costly errors, machine crashes, and scrapped parts. Use CAM software simulation or external verification tools.
Essential Tips for Beginners and Professionals
- **Start Simple, Master the Basics:** Don't jump into 5-axis machining on day one. Understand 2D and 3D milling/turning fundamentals thoroughly.
- **Invest in Quality Tools:** Cheap tools often lead to poor performance, frequent changes, and ultimately higher costs.
- **Learn G-code Fundamentals:** While CAM software generates G-code, understanding its basic structure allows for troubleshooting, minor edits, and a deeper appreciation of the machine's actions.
- **Embrace Simulation Software:** Beyond CAM, dedicated simulation software can predict material removal, analyze cutting forces, and optimize cycle times.
- **Continuous Learning:** The field of machining and CNC is constantly evolving. Stay updated with new materials, cutting tool technologies, software features, and automation trends.
Conclusion
Machining and CNC technology are the bedrock of modern manufacturing, enabling the creation of virtually everything around us, from the smallest medical implants to the largest aerospace components. By understanding the fundamentals of material removal, embracing the precision of CNC automation, and applying practical optimization strategies, you can unlock immense potential in production efficiency, part quality, and design complexity.
From the initial CAD design to the final polished part, the journey through CNC machining is a blend of art and science. By focusing on smart tool path generation, meticulous setup, and continuous learning, you'll not only avoid common pitfalls but also consistently produce high-quality, precise parts. The future of manufacturing is increasingly automated and intelligent; mastering CNC technology today is an investment in tomorrow's innovation.
