# Unlocking Hidden Insights: Your Comprehensive Guide to Infrared Thermography and Thermal Nondestructive Testing
In an era where efficiency, safety, and predictive maintenance are paramount, industries are constantly seeking advanced tools to monitor their assets. Infrared Thermography, when applied as a Nondestructive Testing (NDT) method, stands out as a powerful, non-invasive technique. It allows us to visualize the invisible – heat – revealing critical insights into the health and integrity of materials and systems.
This guide will demystify infrared thermography and thermal NDT, providing you with a practical understanding of its principles, applications, and how to effectively implement it. You'll learn how to leverage temperature differences to detect hidden defects, prevent costly failures, and optimize operational performance.
Understanding the Fundamentals: Seeing Beyond the Visible
At its core, infrared thermography is the science of acquiring and analyzing thermal information from non-contact thermal imaging devices. Everything emits infrared radiation, a form of electromagnetic energy that our eyes cannot see but we perceive as heat. Infrared (IR) cameras detect this radiation and convert it into a visual image, where different colors represent different temperatures.
When applied as **Thermal Nondestructive Testing (NDT)**, this technique allows inspectors to evaluate the properties of a material, component, or system without causing damage. The presence of a defect (e.g., a void, delamination, or crack) within a material often alters its thermal properties, leading to localized temperature differences on the surface. These thermal anomalies are precisely what an IR camera captures, providing a window into the internal condition of an object.
Thermal NDT is broadly categorized into two main approaches:
- **Passive Thermography:** This involves observing objects that are naturally at a different temperature than their surroundings, or are generating heat due due to their operational state (e.g., an overloaded electrical connection, a hot bearing). It's excellent for condition monitoring and predictive maintenance.

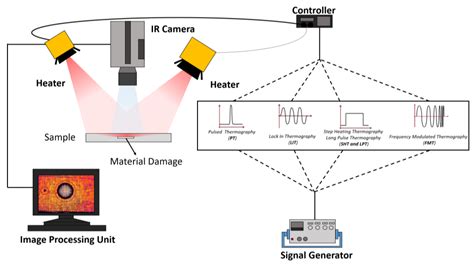

- **Active Thermography:** Here, an external heat source (e.g., flash lamp, heat gun, induction heater) is applied to the object, and the thermal response (how heat propagates and dissipates) is monitored. Defects impede or alter heat flow, creating detectable surface temperature variations. This method is particularly effective for detecting subsurface defects in composites, coatings, and bond lines.
Key Applications: Where Thermal NDT Makes a Difference
Thermal NDT is incredibly versatile, offering critical advantages across a multitude of industries:
1. Electrical Systems & Components
- **Identifying Hot Spots:** Overloaded circuits, loose connections, failing breakers, and imbalanced loads generate excess heat, which can lead to fires or power outages. Thermography quickly pinpoints these anomalies.
- **Preventive Maintenance:** Regular thermal scans can prevent unscheduled downtime and catastrophic failures by identifying issues before they escalate.
2. Mechanical Systems & Rotating Equipment
- **Bearing & Motor Health:** Overheating bearings due to friction, lubrication issues, or misalignment are easily detected. Similarly, motor winding problems or excessive load can be identified.
- **Fluid Leaks:** Locating leaks in pipes, valves, and tanks by observing temperature differences caused by escaping fluids or gas.
3. Building & Infrastructure Inspections
- **Energy Audits:** Detecting insulation deficiencies, air leaks around windows and doors, and thermal bridges that contribute to energy loss.
- **Moisture Detection:** Identifying hidden moisture intrusion within walls or roofs, which can lead to mold growth and structural damage.
- **HVAC Systems:** Assessing ductwork integrity, radiator performance, and heat exchanger efficiency.
4. Material Science & Manufacturing
- **Composite & Bonded Structures:** Detecting delaminations, voids, disbonds, and impact damage in aerospace composites, wind turbine blades, and automotive components.
- **Welding Inspection:** Assessing weld quality and detecting defects like lack of fusion or inclusions by analyzing thermal signatures during or after the welding process.
- **Quality Control:** Ensuring uniform heating in industrial processes, identifying material inconsistencies in production lines.
Practical Tips for Effective Thermography
To unlock the full potential of thermal NDT, consider these actionable tips:
1. **Understand Your Environment:**- **Emissivity:** This is crucial! Different materials emit IR radiation differently. Know the emissivity of the surfaces you're inspecting and set your camera accordingly. Polished metals have low emissivity, while painted surfaces have higher emissivity.
- **Reflections:** Shiny surfaces can reflect thermal energy from other objects (e.g., your own body heat, sunlight). Be aware of potential reflections and adjust your angle or environment.
- **Ambient Temperature:** Large temperature differences between the object and its surroundings can make detection easier, but extreme conditions can also introduce noise.
- **Resolution & Sensitivity:** Higher resolution provides more detail, while better thermal sensitivity (NETD - Noise Equivalent Temperature Difference) allows for detection of smaller temperature variations. Match these to your application's requirements.
- **Lens Options:** Wide-angle lenses for large areas, telephoto lenses for distant or small targets.
- **Focus:** Always ensure your image is in sharp focus for accurate temperature readings.
- **Distance & Angle:** Get close enough for detail, but maintain a safe distance. Inspect at a perpendicular angle to minimize reflections and maximize measurement accuracy.
- **Baseline Images:** Capture "healthy" images for comparison during future inspections.
- Modern IR cameras come with powerful software for post-processing, trend analysis, and professional report generation. Use these tools to quantify findings, compare data over time, and create actionable recommendations.
- Always be aware of the hazards in your inspection environment, especially when working with live electrical equipment or hot machinery. Follow all safety protocols.
Common Mistakes to Avoid
Even experienced professionals can fall prey to these thermography pitfalls:
- **Ignoring Emissivity Settings:** Incorrect emissivity is the most common cause of inaccurate temperature readings. Always verify and adjust.
- **Failing to Account for Reflections:** Misinterpreting reflected heat as actual surface temperature. Use strategies like changing your viewing angle or using a shield.
- **Poor Focus:** Blurry images lead to averaged temperature readings and missed details.
- **Lack of Training:** Assuming a thermal camera is just a "point and shoot" device. Proper certification (e.g., Level I, II, III Thermographer) is essential for accurate interpretation.
- **Insufficient Context:** Reporting a "hot spot" without understanding its operational significance or comparing it to similar, healthy components.
- **Over-reliance on Palettes:** While color palettes are useful for visualization, avoid making decisions solely based on the color displayed. Always refer to the actual temperature values.
Conclusion
Infrared thermography and thermal NDT are indispensable tools for modern industry. By translating invisible heat into actionable insights, they empower organizations to move beyond reactive repairs towards proactive, predictive maintenance. From safeguarding electrical systems and optimizing manufacturing processes to ensuring the structural integrity of materials, the ability to "see" temperature differences is a game-changer.
By understanding the fundamentals, applying practical tips, and avoiding common errors, you can effectively integrate this powerful technology into your operations, enhancing safety, improving efficiency, and driving significant cost savings. Embrace the invisible, and unlock a new level of operational excellence.
