# Optimizing Image Processing with Xilinx Devices: A Comprehensive Guide
Image processing is at the heart of countless modern applications, from autonomous vehicles and medical diagnostics to industrial automation and consumer electronics. As demands for real-time performance, energy efficiency, and high throughput continue to grow, traditional CPU-based solutions often hit their limits. This is where Xilinx Field-Programmable Gate Arrays (FPGAs) and Adaptive SoCs (Systems-on-Chip) emerge as powerful accelerators.
This guide will walk you through the world of image processing on Xilinx platforms, demystifying the design choices, tools, and best practices. You'll learn why Xilinx devices are uniquely suited for these tasks, explore different implementation methodologies, understand the development flow, and gain practical insights to build high-performance, custom image processing solutions.
Why Xilinx Devices for Image Processing?
Xilinx devices offer a unique blend of capabilities that make them ideal for accelerating computationally intensive image processing tasks:
The Power of Parallelism
FPGAs are inherently parallel architectures. Unlike sequential CPUs, they can execute thousands of operations simultaneously, processing multiple pixels or even entire image rows in a single clock cycle. This massive parallelism is crucial for real-time video streams and high-resolution imagery.Low Latency & High Throughput
Custom hardware implementations on FPGAs can achieve extremely low latency, making them perfect for applications requiring immediate responses. Their ability to process large volumes of data concurrently also translates into unparalleled throughput.Custom Hardware & Flexibility
FPGAs allow you to design custom hardware accelerators tailored precisely to your specific image processing algorithms. This eliminates the overhead of general-purpose processors, leading to more efficient and optimized solutions for unique challenges.Energy Efficiency
By implementing only the necessary logic, FPGAs can be significantly more energy-efficient than CPUs or GPUs for specialized image processing tasks, especially at the edge or in power-constrained environments.Scalability
Xilinx offers a wide range of devices, from cost-optimized FPGAs for embedded vision to high-performance Versal Adaptive SoCs integrating AI engines, allowing solutions to scale from compact edge devices to data center acceleration.Core Approaches to Image Processing on Xilinx Platforms
Developing image processing solutions on Xilinx devices involves several distinct methodologies, each with its own advantages and trade-offs. Understanding these approaches is key to selecting the right path for your project.
Pure Hardware (HDL/RTL) Implementation
This involves writing the hardware description language (HDL) code (VHDL or Verilog) directly to describe the logic gates and registers.- **Pros:** Achieves maximum performance, lowest latency, and most fine-grained control over hardware resources. Ideal for highly optimized, critical paths.
- **Cons:** Requires deep knowledge of digital design and HDL. Development and verification are time-consuming and complex.
- **Use Case:** High-speed real-time systems, custom IP development where absolute peak performance is paramount.
High-Level Synthesis (HLS) with Vitis HLS
HLS allows designers to write hardware accelerators using C, C++, or OpenCL, which are then synthesized into RTL. Xilinx's Vitis HLS is the primary tool for this.- **Pros:** Significantly faster development cycles (software-like development flow), easier verification through C/C++ simulation, and improved IP reuse. Accessible to software engineers.
- **Cons:** May not always achieve the absolute peak performance of hand-coded RTL, and requires careful coding patterns to guide the HLS tool effectively.
- **Use Case:** Rapid prototyping, complex filter chains, algorithm exploration, and when balancing performance with development time is crucial.
Using Xilinx IP Cores & Libraries (Vitis Vision Library)
Xilinx provides a rich ecosystem of pre-optimized, parameterized Intellectual Property (IP) cores and high-level libraries (like the Vitis Vision Library for HLS).- **Pros:** Dramatically reduces development time and effort. IPs are thoroughly tested and optimized for Xilinx architectures.
- **Cons:** Less flexibility for highly custom or novel algorithms that don't fit existing IP functions.
- **Use Case:** Standard image processing tasks such as filtering (Gaussian, Sobel), color space conversions, morphological operations, and transforms.
Software-Defined (Processor-Centric) on Zynq/Versal

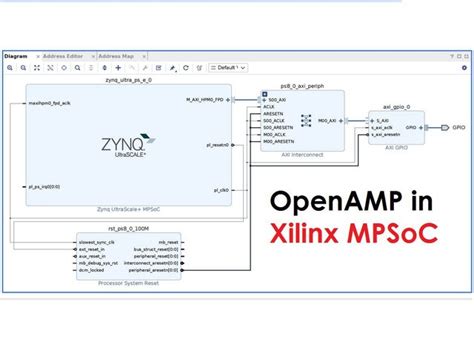

For Zynq and Versal Adaptive SoCs, a powerful ARM processor system (PS) runs an operating system (Linux) and manages peripherals. Image processing can be done purely in software on the PS, or offloaded to the Programmable Logic (PL).- **Pros:** Easy integration with existing software stacks, network interfaces, and user interfaces. Ideal for overall system control, less performance-critical pre/post-processing, or managing accelerated functions in the PL.
- **Cons:** Performance bottleneck for computationally intensive image processing if not offloaded.
- **Use Case:** Image capture, display, high-level algorithm control, and data management, often coordinating with PL accelerators.
Here's a quick comparison:
| Approach | Development Effort | Performance Potential | Flexibility | Ideal For |
| :-------------------- | :----------------- | :------------------ | :---------- | :--------------------------------------- |
| Pure RTL | High | Highest | Highest | Custom, ultra-low latency, maximum perf. |
| Vitis HLS | Medium | High | High | Complex algorithms, faster iteration |
| Xilinx IP Cores | Low | High | Medium | Standard tasks, quick integration |
| Software (on PS) | Low | Low to Medium | High | Control, non-critical tasks, OS features |
The Xilinx Design Flow for Image Processing
The unified Xilinx Vitis software platform streamlines the development process for hardware-accelerated applications.
Vitis Unified Software Platform
Vitis serves as the primary development environment, integrating HLS, RTL design, and software application development. It allows you to build a complete system, from custom hardware accelerators in the Programmable Logic (PL) to the software running on the Processor System (PS).Key Steps:
1. **Algorithm Selection & Software Optimization:** Start by defining your image processing algorithm. Simulate it in software (e.g., using OpenCV) to verify functionality and identify performance bottlenecks that are good candidates for hardware acceleration. 2. **Hardware/Software Partitioning:** Decide which parts of your algorithm will run on the embedded processor (PS) and which will be accelerated in the programmable logic (PL). Typically, compute-intensive, pixel-level operations go to the PL. 3. **Hardware Acceleration Development:**- **HLS:** Develop C/C++ kernels using Vitis HLS, focusing on dataflow and pipelining for parallelism.
- **RTL:** Write custom RTL code for specific blocks.
- **IP Integration:** Incorporate Xilinx Vision Library IPs or other existing IP cores.
Practical Tips for Success
- **Optimize Data Movement:** Data transfer between the processor and the programmable logic, or between external memory (DDR) and the PL, is often the bottleneck. Use AXI-Stream for high-throughput pixel data and AXI-Lite for control signals.
- **Embrace Pipelining and Parallelism:** FPGAs thrive on concurrency. Design your algorithms to process multiple data points simultaneously (parallelism) and continuously (pipelining) to maximize throughput.
- **Manage Memory Bandwidth:** High-resolution images demand significant memory bandwidth. Utilize on-chip Block RAMs (BRAMs) for local, fast access buffers, and carefully manage DDR accesses to avoid contention.
- **Leverage Fixed-Point Arithmetic:** For many image processing tasks, floating-point precision is overkill. Converting to fixed-point arithmetic can significantly reduce resource utilization and improve performance without sacrificing image quality.
- **Start with Vitis Vision Library:** Don't reinvent the wheel. The Vitis Vision Library offers highly optimized and ready-to-use IP cores for common image processing functions, providing a solid foundation.
- **Profile and Optimize:** Use Vitis Analyzer to identify performance bottlenecks and resource usage. This tool is invaluable for iterative optimization.
Real-World Examples and Use Cases
Xilinx devices are empowering a new generation of image processing applications:
- **Real-time Video Analytics:** Object detection, tracking, and classification in surveillance, smart cities, and retail, all processed at the edge with low latency.
- **Medical Imaging:** High-speed image reconstruction, enhancement, and segmentation for MRI, CT, and ultrasound, enabling faster diagnostics.
- **Industrial Inspection:** Defect detection, quality control, and robotic guidance on production lines, where milliseconds matter.
- **Autonomous Vehicles:** Sensor fusion, perception systems, and path planning, processing camera, LiDAR, and radar data in real-time.
- **Broadcast Video Processing:** Live transcoding, scaling, and special effects for high-definition and ultra-high-definition video streams.
Common Mistakes to Avoid
- **Ignoring Data Movement Bottlenecks:** Focusing solely on compute acceleration without optimizing how data gets to and from the accelerator will cripple performance.
- **Insufficient Pipelining or Parallelism:** Underutilizing the FPGA's inherent strengths by designing sequential logic that doesn't fully exploit concurrency.
- **Over-reliance on External DDR Memory:** Treating DDR as limitless. High latency and finite bandwidth can easily become a bottleneck for pixel data.
- **Lack of Hardware/Software Co-design:** Designing hardware accelerators in isolation without considering how the software will interact with them for control and data transfer.
- **Ignoring Resource Utilization:** Attempting to implement an algorithm that exceeds the available resources (LUTs, FFs, BRAMs) of the chosen device.
- **Poor Algorithm Choice for Hardware:** Selecting an algorithm that is inherently sequential or difficult to parallelize, making it unsuitable for efficient hardware acceleration.
Conclusion
Image processing with Xilinx devices offers unparalleled opportunities for high-performance, low-latency, and energy-efficient solutions. By leveraging the parallel architecture of FPGAs and the unified power of the Vitis platform, designers can choose from a spectrum of approaches – from fine-grained RTL to high-level C/C++ synthesis and pre-optimized IP libraries – to tackle even the most demanding imaging challenges. Understanding these methodologies, optimizing data flow, and embracing the iterative design process are key to unlocking the full potential of Xilinx hardware for your next image processing innovation. Dive into Vitis, explore the possibilities, and start accelerating your vision applications today.
