# Mastering Your Multimeter: An Essential Guide for Safe and Effective Electrical Diagnostics
In a world increasingly reliant on electronics and electrical systems, the ability to diagnose and troubleshoot electrical issues is an invaluable skill. Whether you're a seasoned electrician, an automotive enthusiast, a diligent DIYer, or simply a homeowner looking to understand your appliances better, the multimeter stands as an indispensable tool. Far from being a complex gadget reserved for professionals, this versatile device, when understood and used correctly, can unlock a deeper understanding of electrical circuits, enhance safety, and save you considerable time and money on repairs.
This comprehensive guide aims to demystify the multimeter, providing clear, step-by-step instructions on its usage, fundamental measurements, and crucial safety protocols. Prepare to transform from a hesitant observer to a confident diagnostician, capable of identifying electrical faults and ensuring the smooth operation of your electrical world.
What is a Multimeter and Why Do You Need One?
At its core, a multimeter is an electronic measuring instrument that combines several measurement functions into one unit. Often referred to as a VOM (Volt-Ohm-Milliammeter) or, more commonly today, a DMM (Digital Multimeter), it allows you to measure essential electrical properties such as voltage, current, and resistance. These three fundamental measurements form the bedrock of electrical troubleshooting and diagnostics.
The need for a multimeter extends across a vast spectrum of applications. For professionals, it's a daily companion for installing new systems, identifying wiring faults, and ensuring compliance with safety standards. For the hobbyist, it’s crucial for developing electronic projects and understanding component behavior. Homeowners can use it to check battery life, diagnose faulty outlets, or even test appliance components before calling a technician. As electrical engineer Sarah Jenkins notes, "A multimeter isn't just a tool for repair; it's a tool for understanding. It provides the data needed to make informed decisions about electrical systems, preventing potential hazards and costly mistakes."

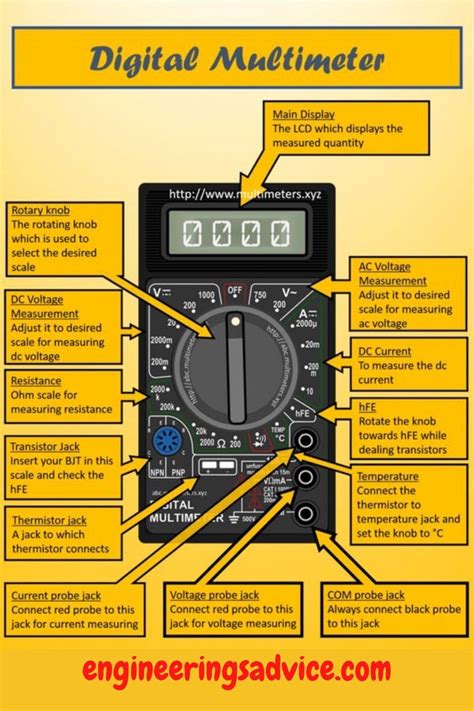

Anatomy of a Multimeter: Understanding Its Components
Before diving into measurements, it’s vital to familiarize yourself with the basic components of a typical digital multimeter. Understanding each part ensures correct setup and safe operation.
The primary components include:- **Display:** This is where your readings appear. Digital multimeters typically show numerical values, often with units.
- **Function Dial (Rotary Switch):** This dial allows you to select the type of measurement (e.g., voltage, current, resistance) and often the measurement range (e.g., AC or DC, specific voltage limits).
- **Input Jacks:** These are the ports where you plug in your test leads. Most multimeters have three or four jacks:
- **COM (Common):** This is always where the black test lead is connected. It serves as the reference point for all measurements.
- **VΩmA:** This jack is typically for measuring voltage, resistance, and small currents (milliamperes). The red test lead usually goes here for these measurements.
- **10A (or similar high current jack):** This dedicated jack is used for measuring larger currents (up to 10 amps or more). The red test lead is moved here when measuring high current.
- **Test Leads (Probes):** These are insulated wires with a sharp metal tip on one end and a banana plug on the other. They come in pairs, typically one red and one black.
Connecting your test leads correctly is paramount. The black lead always connects to the COM jack. The red lead's placement depends entirely on the measurement you intend to make. Incorrect lead placement, especially when measuring current, can damage the multimeter or, more critically, the circuit you are testing. Always double-check your connections before powering on a circuit or taking a reading.
Essential Measurements: Voltage, Current, and Resistance
The core utility of a multimeter lies in its ability to measure three fundamental electrical properties. Each measurement requires a specific setup and understanding.
Measuring Voltage (Volts - V)
Voltage, often referred to as electrical potential difference, is the "pressure" that pushes electrons through a circuit. It’s measured in Volts (V). When measuring voltage, you’re looking to find the difference in electrical potential between two points in a circuit.
To measure voltage:
1. **Select the Voltage Function:** Turn the function dial to the appropriate voltage setting. This will typically be represented by a "V" with either a straight line (for DC voltage, like batteries) or a wavy line (for AC voltage, like wall outlets). Start with a higher range if you're unsure of the voltage level, then adjust down for more precise readings.
2. **Connect Test Leads:** Plug the black lead into the COM jack and the red lead into the VΩmA jack.
3. **Connect to Circuit:** Place the probes *in parallel* across the component or power source you want to measure. This means the probes touch two different points in the circuit without breaking the circuit's path. For example, to check a 9V battery, touch the red probe to the positive terminal and the black probe to the negative terminal. To check an outlet, insert the probes into the hot and neutral slots.
*Professional Insight:* Always ensure you select the correct AC or DC voltage setting. Measuring AC voltage on a DC setting, or vice versa, will result in an inaccurate reading and could potentially harm the multimeter.
Measuring Current (Amperes - A)
Current is the flow rate of electrons through a circuit, measured in Amperes (A). Unlike voltage, which is measured across a component, current must be measured *in series* with the circuit. This means you must break the circuit and insert the multimeter into the path of the current flow.
To measure current:
1. **Select the Current Function:** Turn the dial to the appropriate amperage setting (A or mA for milliamps, often denoted with a straight or wavy line for DC or AC current).
2. **Connect Test Leads:** This is critical! Plug the black lead into the COM jack. For measuring larger currents (e.g., up to 10A), move the red lead to the dedicated 10A jack. For smaller currents (mA), keep the red lead in the VΩmA jack.
3. **Break the Circuit:** Disconnect one part of the circuit where you want to measure the current.
4. **Connect to Circuit (in Series):** Place the red probe on one side of the break and the black probe on the other side, effectively making the multimeter part of the circuit. The current will now flow through the multimeter.
*Warning:* Never attempt to measure current by connecting the multimeter in parallel across a voltage source (like directly across a battery or wall outlet). This will create a short circuit through the multimeter, potentially blowing its internal fuse, damaging the device, or causing a dangerous arc flash. Electrical safety expert Dr. Mark Thompson advises, "Measuring current is inherently more complex and potentially hazardous. Always disconnect power, ensure the circuit is broken, and double-check your lead placement before completing the circuit."
Measuring Resistance (Ohms - Ω)
Resistance is the opposition to the flow of current, measured in Ohms (Ω). It tells you how much a component or wire resists the flow of electricity. Resistance measurements are invaluable for checking continuity, identifying faulty components, or locating breaks in wires.
To measure resistance:
1. **De-energize the Circuit:** This is the most crucial step. *Always ensure the circuit or component you are testing is completely disconnected from any power source.* Measuring resistance on a live circuit can damage your multimeter and give inaccurate readings.
2. **Select the Resistance Function:** Turn the dial to the Omega (Ω) symbol.
3. **Connect Test Leads:** Plug the black lead into the COM jack and the red lead into the VΩmA jack.
4. **Connect to Component:** Place the probes across the component or wire you wish to measure. For example, to check a fuse, touch one probe to each end of the fuse. A reading close to zero ohms indicates continuity (a good fuse), while an "OL" (Open Loop) or infinite reading indicates an open circuit (a blown fuse).
*Expert Tip:* When measuring the resistance of components like resistors, ensure your hands don't touch both probes and the component simultaneously, as your body's resistance can interfere with the reading.
Beyond the Basics: Advanced Functions and Best Practices
Modern digital multimeters often include additional functions that enhance their utility:
- **Continuity Test:** This is a specialized resistance test that often emits an audible beep if there is a continuous path (very low resistance) between the two probes. It's excellent for quickly checking fuses, switches, or wires for breaks.
- **Diode Test:** Used to check the functionality of diodes, which allow current to flow in only one direction.
- **Capacitance, Frequency, Temperature:** Higher-end multimeters may offer these additional measurement capabilities, useful for specific electronic and HVAC applications.
Regardless of your experience level, adopting best practices is essential for safe and accurate multimeter usage:
1. **Safety First:** Always assume a circuit is live until proven otherwise. Use appropriate personal protective equipment (PPE) like safety glasses and insulated gloves when working with electricity.
2. **Start High, Go Low:** When measuring an unknown voltage or current, always start with the highest range setting on your multimeter. If the reading is too low, gradually decrease the range until you get an accurate measurement. This prevents overloading the meter.
3. **Good Contact:** Ensure your probes make firm, clean contact with the test points to get reliable readings.
4. **Check Multimeter Battery:** A low battery in your multimeter can lead to inaccurate readings. Replace it regularly.
5. **Read the Manual:** Every multimeter is slightly different. Always refer to your specific model's user manual for detailed instructions and safety warnings.
Conclusion: Empowering Your Electrical Understanding
The multimeter is more than just a tool; it's an extension of your senses into the invisible world of electricity. By mastering its functions, you gain the power to diagnose issues, ensure safety, and make informed decisions about your electrical systems. From checking a simple battery to troubleshooting complex wiring, the knowledge of how to use a multimeter safely and effectively empowers you to tackle challenges with confidence. Embrace this essential device, practice its measurements, and unlock a new level of electrical understanding that will serve you well in countless situations.
