# Unmasking the Flaws: A Deep Dive into Die Casting Defects, Their Causes, and Engineering Solutions
The hum of machinery, the molten metal pouring into precisely engineered dies, the promise of perfectly formed components – die casting is a cornerstone of modern manufacturing. From intricate automotive parts to consumer electronics casings, this high-pressure process delivers precision and efficiency. Yet, beneath the surface of this industrial ballet lies a persistent challenge: defects. A single flaw can halt production, incur massive costs, and erode a brand's reputation. It's a constant battle between metallurgical science, mechanical engineering, and meticulous process control.
Imagine a scenario: a critical batch of components, destined for an assembly line, is rejected due to microscopic porosity or an almost imperceptible cold shut. The ripple effect is immediate – delays, rework, material waste, and the pressure to identify and rectify the problem before the next shift. This isn't just about technical failure; it's about the economic health of a company and the trust of its customers. Understanding and conquering die casting defects isn't merely an operational necessity; it's an art form honed by experience, analysis, and continuous innovation.

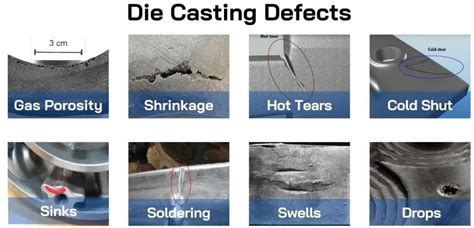

The Silent Saboteurs: Understanding Common Die Casting Defects
Die casting defects manifest in various forms, each telling a story about the complex interplay of material, machine, and method. Categorizing them helps in diagnosis, but their root causes often overlap.
Surface Imperfections: The Visible Cues
These defects are often the first to be spotted, impacting aesthetics and sometimes structural integrity.
- **Porosity (Gas & Shrinkage):**
- **Gas Porosity:** Appears as smooth, rounded voids, typically caused by trapped air or gas from lubricants and molten metal.
- **Shrinkage Porosity:** Characterized by jagged, irregular cavities, occurring when molten metal solidifies unevenly and insufficient material feeds into the shrinking sections.
- **Cold Shuts/Flow Marks:** Visible lines or seams where two streams of molten metal meet but fail to fuse completely. This often results in weakened areas and poor surface finish.
- **Soldering/Erosion:** Occurs when molten metal chemically bonds or erodes the die surface, leading to material transfer from the die to the casting, causing rough surfaces and sticking.
Internal Flaws: The Hidden Weaknesses
These defects are more insidious, often requiring advanced inspection techniques to detect.
- **Shrinkage Cavities:** Larger, internal versions of shrinkage porosity, typically found in thicker sections of the casting, indicating inadequate feeding during solidification.
- **Hot Tears:** Irregular cracks that form during solidification, often in areas of high stress concentration, due to the casting's inability to contract freely.
Dimensional Inaccuracies: The Fit and Function Failures
These defects compromise the component's ability to fit or function correctly in an assembly.
- **Warpage/Distortion:** The casting deviates from its intended shape, often due to uneven cooling rates or residual stresses locked into the material.
Tracing the Root: The Multifaceted Causes of Defects
Pinpointing the exact cause of a defect requires a holistic approach, examining the entire casting ecosystem. "Many defects are not isolated incidents," notes Dr. Lena Petrova, a leading metallurgist, "but rather a symptom of a systemic imbalance across material science, tooling, and process kinetics."
Material-Related Issues
- **Alloy Composition & Impurities:** Incorrect alloy grades, high gas content (e.g., hydrogen in aluminum), or impurities can lead to porosity, hot tears, and poor mechanical properties.
- **Melt Temperature:** If the melt is too cold, it can cause cold shuts and incomplete filling. If too hot, it can accelerate die erosion and increase shrinkage.
Machine & Die Design Factors
- **Injection Speed & Pressure:** Inadequate or excessive injection parameters can lead to cold shuts, porosity, flash, and erosion. Too slow, and the metal cools prematurely; too fast, and air gets trapped.
- **Die Temperature Control:** Uneven or incorrect die temperatures are a major culprit for warpage, cold shuts, and soldering. Hot spots can cause sticking, while cold spots lead to incomplete fills.
- **Gate & Runner Design:** Improper design can cause turbulent flow, leading to trapped air (porosity) or premature solidification (cold shuts).
- **Venting & Overflow:** Insufficient vents prevent trapped air from escaping, leading to gas porosity. Overflow wells are crucial for collecting cold metal fronts and impurities.
Process Parameter Pitfalls
- **Lubrication:** Too much lubricant can generate gas (porosity); too little can cause soldering and ejection issues. The wrong type of lubricant can also be problematic.
- **Cycle Time:** An optimized cycle time is crucial. Too short, and the casting might not solidify properly; too long, and productivity suffers, and die heat can build up.
- **Ejection Issues:** Improper ejection can cause casting distortion or damage, especially if the casting is still too hot or the ejector pins are misaligned.
Engineering Excellence: Proactive Solutions and Mitigation Strategies
Addressing die casting defects requires a blend of preventative measures and responsive problem-solving. Comparing traditional trial-and-error with modern analytical tools highlights significant shifts in efficacy and cost.
1. Design for Manufacturability (DFM)
- **Approach:** Integrating casting considerations early in the product design phase. This includes optimizing wall thickness, radii, draft angles, and parting lines to facilitate smooth metal flow and uniform solidification.
- **Pros:** Prevents issues upstream, significantly reducing costly redesigns and retooling later. It's the most cost-effective solution in the long run.
- **Cons:** Requires specialized expertise and close collaboration between product designers and casting engineers, potentially leading to design compromises.
2. Advanced Process Control & Simulation
- **Approach:** Utilizing real-time monitoring sensors for melt temperature, injection pressure, speed, and die temperature. Crucially, this involves **casting simulation software** (e.g., MAGMA, Flow-3D).
- **Pros:**
- **Simulation:** Predicts metal flow, solidification patterns, potential porosity, and cold shuts *before* cutting steel. It allows engineers to virtually test different gate designs, runner systems, and cooling channel configurations, significantly reducing physical prototyping and trial-and-error cycles.
- **Real-time Monitoring:** Allows for immediate adjustments and maintains consistent quality throughout a production run.
- **Cons:** High initial investment in software and hardware; requires highly skilled operators and analysts. While powerful, simulations are models and require accurate input data.
3. Material Optimization
- **Approach:** Implementing advanced degassing techniques (e.g., rotary degassing with inert gases) to remove hydrogen from molten aluminum alloys. Also, selecting alloys with superior castability or specific properties tailored to the part's requirements.
- **Pros:** Directly tackles gas porosity and can improve mechanical properties. Proper alloy selection can reduce hot tearing and improve fluidity.
- **Cons:** Degassing adds a process step and cost; specialized alloys can be more expensive.
4. Die Maintenance & Refinement
- **Approach:** Regular inspection, cleaning, and maintenance of dies. This includes applying advanced die coatings (e.g., nitriding, PVD) to improve wear resistance and reduce soldering, and optimizing cooling channel designs for uniform temperature distribution.
- **Pros:** Extends die life, maintains casting quality, and reduces downtime due to die repair or replacement. Precision cooling can significantly reduce warpage and cold shuts.
- **Cons:** Requires scheduled downtime and skilled technicians; coatings need reapplication over time.
The Economic and Reputational Ripple Effect & The Path Forward
The implications of die casting defects extend far beyond the foundry floor. High scrap rates directly impact material costs and energy consumption. Rework adds labor and time, while warranty claims and product recalls can devastate a company's financial standing and, more critically, its brand reputation.
The future of die casting defect management lies in the integration of **Industry 4.0** principles. Artificial intelligence and machine learning algorithms are increasingly being deployed to analyze vast datasets from sensors, predicting potential defects before they occur and recommending optimal process parameters. This shift towards **predictive quality** will further minimize waste, maximize efficiency, and ensure unparalleled product reliability. Furthermore, advancements in sustainable practices and the development of new, high-performance alloys will continue to push the boundaries of what's achievable in die casting.
Conclusion
Die casting defects are an inherent challenge in a complex manufacturing process. Yet, they are not insurmountable. By adopting a comprehensive strategy that spans meticulous design, advanced simulation, precise process control, and continuous material and tooling optimization, manufacturers can transform potential pitfalls into pathways for innovation. The journey from defect-ridden production to flawless components is one of ongoing learning, technological adoption, and a relentless pursuit of excellence – ensuring that the promise of die casting continues to deliver high-quality, reliable parts that power our modern world.
