# Mastering Aluminum Welding: 7 Essential Principles for Experienced Fabricators
Aluminum, with its unique blend of lightweight strength, corrosion resistance, and aesthetic appeal, is a material of choice across industries from aerospace to automotive. However, welding aluminum presents distinct challenges that demand a nuanced understanding beyond basic techniques. For experienced fabricators, a deep dive into the fundamental principles, viewed through an advanced lens, is crucial for achieving superior weld quality, structural integrity, and aesthetic perfection.
This guide moves beyond the introductory "how-to" and delves into the critical aspects of aluminum welding that differentiate a good weld from an exceptional one. We'll explore the science and strategies behind mastering this challenging yet rewarding metal.
---
1. The Unseen Adversary: Advanced Oxide Layer Management
The immediate formation of an aluminum oxide layer is perhaps the most significant hurdle in aluminum welding. Unlike steel oxide, aluminum oxide (Al₂O₃) has a melting point of approximately 3,700°F (2,038°C), significantly higher than aluminum's base metal melting point of around 1,220°F (660°C). This discrepancy can trap contaminants, cause incomplete fusion, and lead to porosity if not meticulously managed.
- **Deep Dive into Cleaning:**
- **Mechanical Methods:** Beyond just a dedicated stainless steel wire brush, consider specialized abrasive pads or carbide burrs for heavier oxide or prepping thick plates. Always ensure tools are *exclusively* for aluminum to prevent cross-contamination.
- **Chemical Cleaning:** For critical applications, acid etching (e.g., solutions containing phosphoric or hydrofluoric acid) can effectively remove tenacious oxide layers and surface contaminants, improving wetting and fusion. Always follow safety protocols rigorously.
- **Acetone/Degreaser:** Essential for removing oils and greases *before* mechanical or chemical cleaning, as these can be driven into the weld pool during heating.
- **TIG AC Balance:** For AC TIG welding, understanding and adjusting the AC balance control is paramount. A higher positive electrode (EN+) or cleaning action percentage effectively blasts away the oxide layer during the half-cycle, exposing the pure aluminum for penetration during the negative electrode (EP-) half-cycle. Experienced welders fine-tune this for optimal cleaning without excessive tungsten erosion.
---
2. Thermal Management Mastery: Heat Input & Distortion Control
Aluminum's high thermal conductivity means heat dissipates rapidly from the weld zone, requiring more heat input than steel. Conversely, its low melting point and high coefficient of thermal expansion make it highly susceptible to distortion and burn-through, especially in thinner gauges.
- **Strategic Pre-Heating:** For thicker sections (e.g., >1/4 inch or 6mm), pre-heating is vital to slow the cooling rate, reduce thermal shock, minimize cracking, and ensure full penetration. However, precision is key; overheating can cause grain growth and reduce mechanical properties. Use temperature crayons or infrared thermometers for accurate control.
- **Pulsed Welding Techniques:** Both Pulsed TIG and Pulsed MIG are invaluable for managing heat input. The high-current pulse provides penetration, while the low-current background maintains the arc and allows the weld pool to cool slightly, significantly reducing overall heat input and distortion. This is particularly effective for thin materials or out-of-position welds.
- **Chill Bars & Fixturing:** Utilizing copper or aluminum chill bars can rapidly draw heat away from the weld zone, controlling distortion and preventing burn-through. Sophisticated clamping and fixturing strategies are essential for complex assemblies, often employing strongbacks and jigs to counteract thermal expansion and contraction.
- **Interpass Temperature:** Maintain consistent interpass temperatures to ensure uniform metallurgical properties throughout multi-pass welds.
---
3. Filler Metal Selection: Beyond the Basics
Choosing the correct filler metal is not merely about matching the base alloy; it involves a complex interplay of mechanical properties, crack resistance, corrosion resistance, and post-weld treatment considerations.
- **Common Alloys & Their Nuances:**
- **4043 (Al-Si):** Excellent for crack resistance, high fluidity, good for general purpose, heat-treatable alloys (6xxx series). However, it results in lower strength than 5xxx fillers and turns black when anodized.
- **5356 (Al-Mg):** Offers higher strength and ductility than 4043, excellent for marine applications, and anodizes well. More susceptible to cracking with high dilution from 6xxx series alloys if not careful.
- **Less Common & Specialized Fillers:**
- **4047 (Al-Si with 10-12% Si):** Used for increased fluidity, lower melting point, often for brazing or furnace brazing applications, or thin-gauge joining where maximum fluidity is desired.
- **5554, 5183, 5086:** Specific magnesium content variations for marine, cryogenic, or elevated temperature service, offering tailored strength and corrosion resistance.
- **Dissimilar Alloy Welding:** When joining different aluminum alloys (e.g., 5052 to 6061), the filler metal choice becomes critical. Often, a 4xxx series filler is preferred due to its ability to dilute with various base metals and mitigate hot cracking. Understanding the phase diagrams of the combined alloys is crucial.
- **Post-Weld Heat Treatment:** Some filler metals react differently to post-weld heat treatment. For instance, 4xxx series fillers are generally not suitable for subsequent solution heat treatment and artificial aging, whereas certain 5xxx series can be.
---
4. Shielding Gas Optimization: Purity and Mixes
The shielding gas plays a crucial role in protecting the molten weld pool from atmospheric contamination and influencing arc characteristics, penetration, and cleaning action.
- **Argon (Ar):** The go-to for aluminum, providing good arc stability and cleaning action (with AC TIG). Suitable for most applications.
- **Helium (He):** For thicker sections or applications requiring higher heat input, adding helium (25-75% mix with Argon) significantly increases arc voltage and heat transfer. This allows for faster travel speeds and deeper penetration, reducing porosity and improving fusion, but it can make the arc less stable and require higher flow rates.
- **Argon-Helium Mixes:** Provide a balance between argon's arc stability and helium's heat. The specific ratio is critical and often fine-tuned based on material thickness and desired weld characteristics.
- **Gas Lens:** For TIG welding, using a gas lens provides a smoother, more laminar gas flow, offering superior shielding and allowing for greater tungsten stick-out, which can be advantageous in tight spaces.
- **Flow Rate Precision:** Too low a flow rate leads to inadequate shielding and porosity; too high can introduce turbulence and entrain atmospheric contaminants. Optimizing flow rate based on nozzle size, joint configuration, and environmental conditions (e.g., drafts) is essential.
---

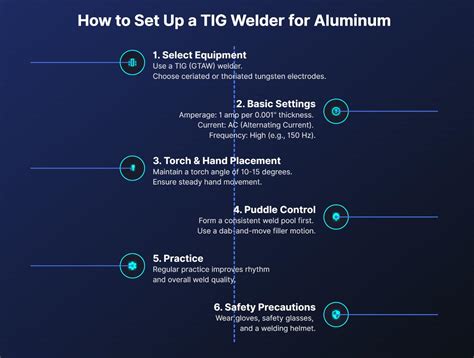

5. Machine Settings & Arc Characteristics: Dialing in Precision
Modern welding machines offer an array of adjustable parameters that, when mastered, unlock unparalleled control over the aluminum welding process.
- **AC Frequency (TIG):** Higher frequencies (e.g., 120-200 Hz) result in a more focused, stiffer arc, allowing for tighter control of the weld pool and improved penetration profile. Lower frequencies produce a broader, softer arc, useful for wider beads or bridging gaps.
- **Waveforms (TIG):** Advanced TIG machines offer different AC waveforms (square, sine, triangular, soft square).
- **Square Wave:** Standard, good balance of cleaning and penetration.
- **Triangular Wave:** Fast rise and fall times, can provide a "crisper" arc and faster travel speeds.
- **Soft Square Wave:** Gentler arc, can reduce arc noise and improve bead appearance.
- **Sine Wave (Legacy):** Smoother arc but less efficient than square wave.
- **Inductance (MIG):** For MIG welding aluminum, adjusting inductance influences the arc characteristics, droplet transfer, and bead profile. Higher inductance results in a softer arc, more fluid puddle, and flatter bead, which can reduce spatter. Lower inductance creates a stiffer arc and hotter puddle, useful for penetration.
- **Pulse Frequency & Duration (Pulsed TIG/MIG):** These parameters directly control heat input and weld pool dynamics. High pulse frequencies can create a "stitching" effect, while lower frequencies offer distinct puddles. Adjusting pulse duration (peak time) impacts penetration and bead width.
---
6. Joint Preparation & Fit-Up: The Foundation of Quality
Even with advanced techniques, poor joint preparation will inevitably lead to defects. Precision in fit-up is paramount for consistent penetration and minimal flaws in aluminum.
- **Beveling Techniques:** For material thicker than 1/4 inch (6mm), beveling is necessary to achieve full penetration. Mechanical methods (milling, grinding with dedicated tools) are preferred over thermal cutting (plasma, oxy-fuel) due to the risk of oxide and contamination. Ensure smooth, consistent bevels.
- **Root Gap & Land:** Maintaining a consistent root gap and land is critical. Too small a gap leads to incomplete fusion, too large to burn-through or excessive filler metal use. Proper fixturing and tack welding are key to holding these tolerances.
- **Backing Bars:** For critical full-penetration welds, especially on thinner materials, using a backing bar (copper, stainless steel, or aluminum) helps support the molten puddle, prevent burn-through, and achieve a consistent root bead. Some backing bars can incorporate gas channels for inert gas back purging.
- **Tack Welding Strategy:** Small, frequent, and well-placed tacks are essential to maintain joint alignment and prevent distortion during the main weld pass. Ensure tacks are clean and fully fused into the final weld.
---
7. Post-Weld Considerations: Enhancing Performance & Longevity
The work isn't over when the arc stops. Post-weld treatments and considerations significantly impact the final product's performance, appearance, and longevity.
- **Controlled Cooling:** For certain heat-treatable alloys, cooling rates can affect the final mechanical properties and microstructure. Avoid excessively rapid cooling that could induce stress or cracking.
- **Grinding & Finishing:** If grinding is required, use dedicated aluminum abrasives and tools to prevent contamination. Aluminum can easily clog grinding discs, leading to overheating and smearing. Achieve desired aesthetic finishes with appropriate grit sequences.
- **Post-Weld Heat Treatment (PWHT):** For specific alloys (e.g., 2xxx, 6xxx, 7xxx series), PWHT can restore or enhance mechanical properties (strength, hardness) lost or altered during the welding process. This requires precise temperature control and understanding of the alloy's specific heat treatment cycles.
- **Inspection & Testing:** Beyond visual inspection, consider non-destructive testing (NDT) methods like dye penetrant inspection (DPI) for surface defects or radiographic testing (RT) and ultrasonic testing (UT) for internal flaws, especially for critical applications.
- **Residual Stress Mitigation:** Welding introduces residual stresses that can lead to distortion or reduced fatigue life. Strategies like peening or stress-relieving heat treatments (where appropriate for the alloy) can mitigate these effects.
- **Anodizing Considerations:** If the part is to be anodized, the choice of filler metal and base metal must be compatible to achieve a uniform anodic layer color and finish. 4043 filler, for instance, typically anodizes to a darker gray, while 5356 is a closer match to common base metals.
---
Conclusion
Welding aluminum is undoubtedly challenging, but for the experienced fabricator, it's an opportunity to showcase precision and expertise. By mastering these seven fundamental principles – from meticulous oxide management and precise thermal control to informed filler selection and advanced machine parameter adjustment – you can consistently achieve welds of exceptional quality, integrity, and aesthetic appeal. The journey to aluminum welding mastery is one of continuous learning, practice, and a deep appreciation for the unique metallurgy of this versatile metal. Embrace these advanced 'basics,' and elevate your aluminum fabrication capabilities to new heights.
