# 6 Essential Automotive Chassis Systems: The Foundation of Every Drive
Every vehicle, from a compact city car to a heavy-duty truck, relies on a sophisticated underlying structure known as the chassis. Far more than just a frame, the chassis is the skeletal backbone that supports all other components, dictating a vehicle's safety, performance, handling, and even its comfort. It's where engineering prowess meets the demands of the road, translating driver input into dynamic motion and ensuring a secure ride.
Understanding these core systems is crucial for anyone interested in automotive engineering, vehicle maintenance, or simply appreciating the intricate design of their daily commute. This article delves into the six fundamental automotive chassis systems, explaining their function, components, and the innovations driving their evolution.
---

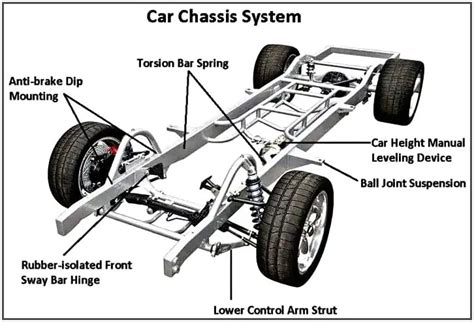

1. The Vehicle Frame/Body Structure: The Ultimate Support System
The frame, or body structure, is the primary load-bearing component of any vehicle. It provides the mounting points for the engine, transmission, suspension, body panels, and all other systems. Its design directly impacts a vehicle's rigidity, crashworthiness, and overall weight.
- **Body-on-Frame:** Traditionally used in trucks, SUVs, and some older cars, this design features a separate, robust ladder-like frame onto which the vehicle body is mounted.
- **Pros:** High strength for hauling and towing, easier to repair collision damage, allows for greater design flexibility between frame and body.
- **Examples:** Ford F-150, Jeep Wrangler, Toyota Land Cruiser.
- **Unibody (Monocoque):** The most common design for modern passenger cars and many crossovers, where the body and frame are integrated into a single, cohesive structure.
- **Pros:** Lighter weight, improved rigidity for better handling, superior crash energy absorption through engineered crumple zones.
- **Examples:** Honda Civic, Tesla Model 3, Volkswagen Golf.
- **Space Frame:** A three-dimensional structure made of interconnected tubes, typically lightweight and very rigid, often covered by non-structural body panels.
- **Pros:** Excellent rigidity-to-weight ratio, ideal for high-performance sports cars.
- **Examples:** Audi R8, some Lotus models.
**Expert Insight:** Modern manufacturing increasingly uses advanced materials like high-strength steel, aluminum alloys, and carbon fiber composites in unibody structures. This multi-material approach aims to reduce weight for fuel efficiency and electrification, while simultaneously enhancing crash safety and torsional rigidity.
---
2. The Suspension System: Bridging Comfort and Control
The suspension system is the critical link between the vehicle's wheels and its body. Its primary roles are to absorb road imperfections for passenger comfort and to maintain optimal tire contact with the road surface for stable handling and braking.
- **Key Components:**
- **Springs:** Support the vehicle's weight and absorb energy from bumps (e.g., coil springs, leaf springs, torsion bars, air springs).
- **Shock Absorbers (Dampers):** Dissipate the energy absorbed by the springs, preventing continuous bouncing and oscillation.
- **Control Arms/Links:** Connect the wheel hub to the vehicle frame, allowing for vertical movement while controlling wheel alignment.
- **Sway Bars (Anti-roll Bars):** Reduce body roll during cornering, improving stability.
- **Common Types:**
- **MacPherson Strut:** Simple, compact, and widely used, integrating the shock absorber and spring into one unit. (e.g., front suspension on many sedans).
- **Double Wishbone:** Offers superior control over wheel movement and alignment, often found in performance cars.
- **Multi-link:** A more complex design using multiple arms to optimize wheel geometry for both ride comfort and handling.
- **Torsion Beam:** A semi-independent rear suspension often used in compact cars, offering a good balance of cost and performance.
**Expert Insight:** Adaptive and active suspension systems are becoming more prevalent. These systems use sensors and electronic controls to continuously adjust damping forces or even spring rates in real-time, optimizing the ride for varying road conditions and driving styles. This technology is vital for autonomous vehicles, ensuring passenger comfort during hands-off driving.
---
3. The Steering System: Directing the Journey
The steering system allows the driver to precisely control the direction of the vehicle by turning the front wheels. It translates the rotational input from the steering wheel into angular movement of the wheels.
- **Key Components:**
- **Steering Wheel & Column:** The driver's interface, often incorporating safety features like collapsible columns.
- **Steering Gearbox:** Converts rotational motion into linear motion.
- **Rack-and-Pinion:** The most common type, offering direct and responsive steering feel.
- **Recirculating Ball:** Often found in older trucks and heavy-duty vehicles, known for its robustness.
- **Linkages:** Connect the gearbox to the steering knuckles, which in turn connect to the wheels.
- **Power Steering Systems:**
- **Hydraulic Power Steering (HPS):** Uses hydraulic pressure from an engine-driven pump to assist steering.
- **Electric Power Steering (EPS):** Uses an electric motor to assist, offering better fuel efficiency and easier integration with advanced driver-assistance systems (ADAS).
**Expert Insight:** Electric Power Steering (EPS) is rapidly becoming the standard due to its efficiency and ability to integrate with features like lane-keeping assist and automated parking. The future holds "steer-by-wire" systems, which eliminate mechanical connections entirely, offering greater design flexibility and advanced control for autonomous vehicles.
---
4. The Braking System: Ensuring Safety and Control
The braking system is paramount for vehicle safety, allowing the driver to decelerate or stop the vehicle effectively and controllably. It converts kinetic energy into heat energy through friction.
- **Key Components:**
- **Brake Pedal:** Driver input.
- **Master Cylinder:** Converts pedal force into hydraulic pressure.
- **Brake Lines:** Transmit hydraulic pressure to the calipers/wheel cylinders.
- **Calipers & Pads (Disc Brakes):** Pads clamp onto a rotating disc (rotor) to create friction.
- **Wheel Cylinders & Shoes (Drum Brakes):** Shoes press against the inside of a rotating drum.
- **Advanced Braking Technologies:**
- **Anti-lock Braking System (ABS):** Prevents wheel lock-up during hard braking, allowing the driver to maintain steering control.
- **Electronic Brakeforce Distribution (EBD):** Optimizes braking force between front and rear wheels based on load and road conditions.
- **Brake Assist (BA):** Detects emergency braking and applies maximum braking force faster.
- **Regenerative Braking:** In electric and hybrid vehicles, motors act as generators during deceleration, converting kinetic energy back into electricity to recharge the battery.
**Expert Insight:** The integration of braking systems with ADAS features like automatic emergency braking (AEB) and adaptive cruise control is a major area of development. Brake-by-wire systems, similar to steer-by-wire, are also on the horizon, offering faster response times and greater control for autonomous driving.
---
5. Wheels and Tires: The Vehicle's Connection to the Road
Often overlooked as a "system," wheels and tires are the only parts of the vehicle that directly contact the road. They are crucial for grip, handling, ride comfort, and overall performance.
- **Wheels:**
- Provide the mounting surface for the tire and connect to the vehicle's hub.
- Made from steel (durable, inexpensive) or aluminum alloy (lighter, better heat dissipation, aesthetic appeal).
- Wheel size impacts handling, ride quality, and aesthetics.
- **Tires:**
- **Tread:** The patterned rubber surface that provides grip, channels water, and wears down over time.
- **Sidewall:** The flexible part that supports the load and absorbs impacts.
- **Bead:** The edge that seals the tire to the wheel rim.
- **Types:** All-season, summer, winter, performance, off-road – each designed for specific conditions.
- **Tire Pressure Monitoring System (TPMS):** A mandatory safety feature that alerts drivers to low tire pressure.
**Expert Insight:** The development of "smart tires" is gaining momentum. These tires incorporate sensors to monitor not just pressure and temperature, but also tread depth, road conditions, and even tire wear. This data can be fed directly to the vehicle's control systems, optimizing performance, safety, and maintenance schedules.
---
6. The Drivetrain System: Powering the Wheels
While sometimes considered separate, the drivetrain is intrinsically linked to the chassis as it transmits power from the engine or electric motor to the wheels, enabling movement. Its configuration heavily influences handling characteristics.
- **Key Components:**
- **Transmission:** Changes gear ratios to optimize engine speed and torque for varying driving conditions.
- **Driveshaft:** Transmits power from the transmission to the differential (in RWD/AWD vehicles).
- **Differential:** Allows wheels on the same axle to rotate at different speeds during turns.
- **Axles:** Connect the differential to the wheels.
- **Common Drivetrain Layouts:**
- **Front-Wheel Drive (FWD):** Engine and driven wheels are at the front; compact and efficient.
- **Rear-Wheel Drive (RWD):** Engine at the front (usually), driven wheels at the rear; offers better weight distribution for performance and towing.
- **All-Wheel Drive (AWD) & Four-Wheel Drive (4WD):** Distribute power to all four wheels for enhanced traction and stability, especially in adverse conditions.
**Expert Insight:** The electrification of vehicles is dramatically reshaping drivetrain design. Electric vehicles often feature simpler, single-speed transmissions and can utilize multiple electric motors (e.g., one per axle) to provide advanced torque vectoring and precise power delivery, vastly improving traction and handling without complex mechanical differentials.
---
Conclusion
The automotive chassis is a marvel of engineering, a complex interplay of integrated systems that collectively define a vehicle's character. From the fundamental strength of its frame to the nuanced responses of its steering and suspension, each component plays a vital role in delivering a safe, comfortable, and engaging driving experience.
As technology advances, these systems continue to evolve, driven by demands for greater efficiency, enhanced safety, and the advent of autonomous driving. Understanding these foundational elements not only deepens appreciation for modern vehicles but also highlights the continuous innovation that underpins every journey we take.
