# Mastering Concrete Construction: A Deep Dive into ACI 347R-14 and the Art of Formwork Excellence

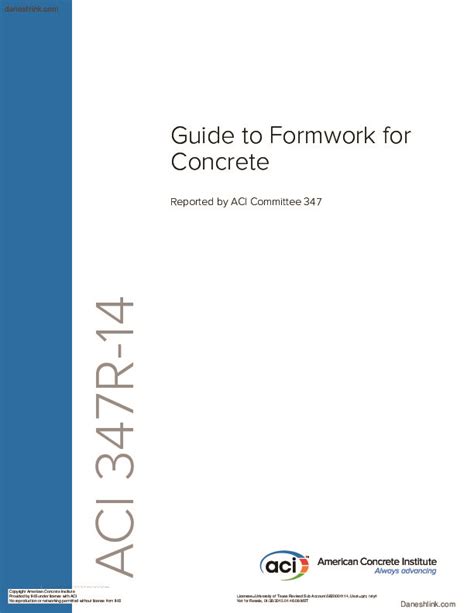

In the intricate world of concrete construction, where precision meets monumental scale, one element often remains an unsung hero: formwork. This temporary structure, critical for shaping and supporting wet concrete until it gains sufficient strength, is foundational to a project's structural integrity, safety, and aesthetic success. Overlooking its meticulous design and implementation can lead to catastrophic failures, costly delays, and compromised quality. Recognizing this paramount importance, the American Concrete Institute (ACI) developed ACI 347R-14: Guide to Formwork for Concrete – an indispensable resource that elevates the standards of formwork practice globally. This article explores the profound impact of this guide, comparing different approaches and highlighting its role in fostering safer, more efficient, and higher-quality concrete structures.
The Unsung Hero: Why Formwork Demands Meticulous Attention
Formwork's primary purpose is deceptively simple: to hold fresh concrete in place, allowing it to cure into its desired shape and strength. However, the forces at play are immense, and the demands on the formwork system are complex. It must withstand significant vertical loads from the concrete's weight, lateral pressures from its hydrostatic nature, and dynamic forces from placement methods and equipment. Any deficiency in design, material, or construction can lead to formwork failure, resulting in concrete spills, structural defects, and, in severe cases, collapses that endanger lives and incur astronomical financial losses.
The repercussions of inadequate formwork extend far beyond immediate safety concerns. Poorly designed or constructed formwork can lead to imperfections in the concrete surface, requiring extensive and costly rework. It can also cause deviations from specified dimensions, compromising the structural integrity and aesthetic appeal of the final build. Such issues not only delay project timelines but also erode client trust and damage a contractor's reputation.
Given the critical role formwork plays, it necessitates a multi-faceted approach involving sound engineering principles, high-quality materials, skilled craftsmanship, and rigorous inspection. This complexity underscores why a comprehensive guide, backed by industry expertise, is not merely beneficial but absolutely essential for anyone involved in concrete construction.
ACI 347R-14: The Blueprint for Best Practices
ACI 347R-14 stands as the definitive guide for formwork design and construction. Unlike a prescriptive code, it offers recommendations, guidelines, and considerations based on extensive research and industry experience. This approach provides flexibility while ensuring a robust framework for safe and efficient practices. The guide addresses the entire lifecycle of formwork, from initial planning and material selection to erection, inspection, and removal, ensuring a holistic understanding of its critical aspects.
A cornerstone of ACI 347R-14 is its detailed guidance on calculating loads and pressures. It differentiates between vertical loads (dead load of formwork and concrete, live loads from workers and equipment) and lateral pressures (hydrostatic pressure of fresh concrete, dynamic pressures from vibration or concrete placement). Understanding these forces is crucial for designing formwork that can adequately resist them without excessive deflection or failure. The guide also delves into environmental factors, such as wind and seismic loads, which can significantly impact formwork stability, especially for tall structures.
Furthermore, the guide provides invaluable insights into material selection and construction practices. It outlines criteria for choosing appropriate formwork materials, emphasizes the importance of proper bracing, ties, and shoring, and details best practices for erection and dismantling. By adhering to these guidelines, engineers and contractors can mitigate risks, enhance operational efficiency, and deliver superior concrete structures that meet the highest standards of quality and safety.
Navigating Formwork Materials and Systems: A Comparative Look
The choice of formwork material and system significantly impacts project cost, schedule, and final concrete quality. ACI 347R-14 provides the principles, but the application often involves selecting from various options, each with its own advantages and disadvantages.
**Traditional Timber Formwork** remains a popular choice, particularly for projects with unique geometries, small-scale pours, or where reusability is not a primary concern.- **Pros:** Highly customizable, cost-effective for one-off or complex shapes, readily available, requires less specialized equipment.
- **Cons:** Labor-intensive for assembly and dismantling, limited reusability (often only 2-5 times), susceptible to moisture absorption and warping, potential for inconsistent concrete finish, and generates more waste.
- **Pros:** High reusability (dozens to hundreds of times), precise dimensions ensuring consistent concrete finish, faster erection and dismantling times, higher load-bearing capacity, reduced waste.
- **Cons:** Higher initial capital investment, less flexible for complex, non-repetitive geometries without specialized components, requires skilled labor for efficient assembly and maintenance, and transportation can be heavier. For instance, **steel formwork** excels in durability and strength for heavy-duty applications like bridge decks or large walls, while **aluminum formwork** offers a lighter alternative, speeding up handling on site, especially for residential high-rises. **Modular plastic formwork** is gaining traction for its lightweight nature, ease of handling, and suitability for curved or intricate designs with less labor.
- **Pros:** Enables continuous pouring, significantly reduces cycle times for repetitive floor plates, minimizes crane dependency for vertical movement, enhances site safety by integrating working platforms.
- **Cons:** Very high upfront cost, complex engineering and planning required, less adaptable to design changes, and generally suitable only for projects with significant scale and repetition. The decision between these systems often hinges on a detailed cost-benefit analysis considering project scale, design complexity, desired finish, labor availability, and reusability potential.
Beyond Design: Critical Considerations for Formwork Implementation
While design is paramount, the successful implementation of formwork extends to meticulous planning, execution, and ongoing monitoring. ACI 347R-14 emphasizes the importance of a comprehensive formwork plan that integrates with the overall construction schedule and safety management system. This plan should detail the sequence of erection and removal, material handling, bracing requirements, and specific safety protocols for working at heights and managing heavy components.
Accurate load calculations must be complemented by vigilant site monitoring during concrete placement. Factors like pour rate, concrete slump, and vibration methods can significantly influence lateral pressures on formwork. Continuous monitoring for signs of deflection, bulging, or movement allows for immediate corrective action, preventing potential failures. Technologies such as pressure sensors embedded within the formwork can provide real-time data, enabling engineers to adjust pour rates and ensure the system remains within its design limits.
Finally, the safe removal of formwork is as critical as its construction. ACI 347R-14 provides clear guidelines for formwork stripping times, which are directly linked to the concrete's achieved strength, not merely a fixed duration. Premature removal can damage the immature concrete, compromising its structural integrity and long-term durability. Conversely, delaying removal unnecessarily can hinder project progress and increase costs. Proper testing of concrete cylinders or cubes is essential to confirm that the concrete has reached the required strength before any formwork is disturbed.
Conclusion
Formwork, though temporary, is an indispensable component of concrete construction, directly influencing the safety, quality, and efficiency of every project. ACI 347R-14: Guide to Formwork for Concrete serves as a critical compass, steering engineers and contractors toward best practices in design, material selection, construction, and removal. By providing detailed recommendations and fostering a deeper understanding of the forces and considerations involved, the guide empowers the industry to mitigate risks, optimize resource utilization, and achieve superior results. Adhering to the principles outlined in ACI 347R-14 is not just about compliance; it's about embracing excellence and ensuring the enduring strength and safety of our built environment.
