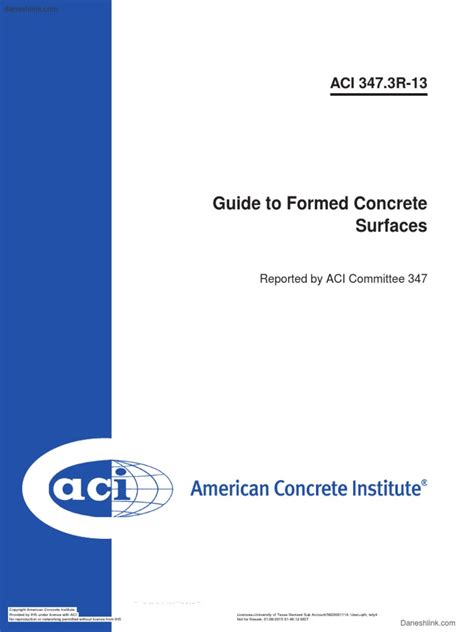

# Mastering Formed Concrete Surfaces: Your ACI 347.3R-13 Essential Guide
Achieving a flawless concrete surface is an art and a science, demanding precision at every stage. For anyone involved in concrete construction, from designers to contractors and inspectors, **ACI 347.3R-13: Guide to Formed Concrete Surfaces** serves as an indispensable roadmap. This comprehensive guide outlines best practices, classifications, and considerations to ensure concrete surfaces meet specified aesthetic and structural criteria.
This article delves into the critical aspects highlighted by ACI 347.3R-13, offering a practical, list-based breakdown. We'll explore key recommendations, common pitfalls, and actionable solutions to help you consistently deliver high-quality formed concrete.
---
1. Understanding Surface Classifications: ACI 347.3R-13's Foundation
The ACI 347.3R-13 guide begins by establishing various surface classifications, which define the expected aesthetic quality and allowable tolerances for a formed concrete surface. These classifications are crucial as they dictate the level of care, formwork quality, and finishing required.
- **Class A (Architectural):** The highest standard, typically specified for prominent, exposed surfaces where appearance is paramount. Demands superior formwork, minimal bug holes, and strict tolerance adherence.
- **Class B (Standard Finish):** Suitable for surfaces where appearance is important but less critical than Class A, such as exposed exterior walls or columns. Allows for a moderate number of minor surface imperfections.
- **Class C (Rough Finish):** Used for surfaces that will be concealed, covered, or are not subject to close aesthetic inspection. Greater tolerance for imperfections.
- **Class D (Utility Finish):** The lowest classification, often for foundations or surfaces that will be backfilled. Focus is primarily on structural integrity.
**Common Mistake to Avoid:** Misinterpreting or vaguely specifying the required surface class. For instance, expecting a Class A finish but only budgeting for Class B materials and labor. This leads to disputes, rework, and cost overruns.
**Actionable Solution:** Clearly define the specific surface classification for each concrete element in the project specifications. Engage in early discussions between the owner, architect, and contractor to set realistic expectations and ensure the budget and construction methods align with the chosen class. Detailed mock-ups for Class A surfaces are highly recommended.
---
2. Formwork Design & Material Selection: The Silent Architects
The formwork is the mold that shapes your concrete, making its design and material selection paramount to the final surface quality. ACI 347.3R-13 emphasizes that formwork must be strong, rigid, and durable enough to withstand concrete pressures without deforming.
- **Rigidity and Strength:** Formwork must maintain its shape without excessive deflection. Inadequate bracing or undersized members can lead to bulges and misalignment.
- **Material Choice:** The form-facing material directly impacts the concrete surface. Options include plywood (various grades), steel, plastic, fiberglass, or specialized liners. Each offers distinct textures and characteristics. For instance, high-density overlay (HDO) plywood or steel forms typically yield smoother, more consistent surfaces suitable for Class A or B.
- **Joint Detailing:** Joints between formwork panels must be tight and sealed to prevent grout leakage, which causes unsightly fins or sand streaks.
**Common Mistake to Avoid:** Reusing damaged or inappropriate formwork materials. Using warped plywood or forms with chipped surfaces will directly transfer those imperfections to the concrete.
**Actionable Solution:** Implement a strict quality control program for formwork. Regularly inspect forms for damage, clean them thoroughly after each use, and replace any compromised panels. Select form-facing materials appropriate for the specified surface class and ensure all joints are meticulously sealed with tape or caulk.
---
3. Pre-Pour Preparation: Setting the Stage for Success
Even the best formwork can't compensate for poor preparation. ACI 347.3R-13 stresses the importance of meticulous preparation before concrete placement to ensure a clean, release-agent-ready surface.
- **Cleaning:** All debris, sawdust, ice, and excess form release agent must be removed from the formwork cavity.
- **Release Agents:** A uniform, thin coat of a compatible form release agent is essential to prevent concrete sticking and facilitate easy stripping. Over-application or improper type can lead to staining or surface degradation.
- **Embedment Coordination:** All embedded items (e.g., rebar, conduits, anchor bolts) must be securely positioned and properly blocked out to prevent movement during concrete placement.
**Common Mistake to Avoid:** Skipping formwork cleaning or applying form release agent haphazardly. Dirty forms can lead to surface discoloration, while excessive or uneven release agent can cause blotchiness or soft spots on the concrete.
**Actionable Solution:** Designate a dedicated crew for pre-pour checks. Ensure all forms are vacuumed or blown clean. Apply form release agents according to manufacturer specifications, using sprayers for even coverage and wiping off any excess. Double-check all embedments for correct placement and secure fastening.
---
4. Concrete Placement & Consolidation: The Heart of the Process
The way concrete is placed and consolidated profoundly impacts the final formed surface. ACI 347.3R-13 provides guidelines to prevent segregation, achieve uniform density, and minimize defects like bug holes and honeycombing.
- **Placement Technique:** Concrete should be placed as close to its final position as possible, avoiding horizontal flow over long distances, which can cause segregation. Drop heights should be minimized, typically not exceeding 5 feet (1.5 meters), or elephant trunks/tremies should be used.
- **Consolidation (Vibration):** Proper vibration is critical to remove entrapped air, achieve full contact with formwork, and ensure a dense, uniform concrete mass. Internal vibrators should be inserted systematically, penetrating previous lifts, and withdrawn slowly.
**Common Mistake to Avoid:** Over-vibration or under-vibration. Under-vibration leaves entrapped air, leading to bug holes and honeycombing. Over-vibration can cause segregation, where heavier aggregates settle, leaving a soupy paste at the surface.
**Actionable Solution:** Train placement and vibration crews on proper techniques. Use an adequate number of vibrators for the volume of concrete. Establish a systematic vibration pattern, ensuring vibrators are inserted deep enough and withdrawn slowly enough to allow air bubbles to escape. Monitor the concrete surface for the appearance of a thin film of paste and the cessation of large air bubbles.
---
5. Formwork Removal & Curing: The Critical Reveal
The timing and method of formwork removal, combined with proper curing, are crucial for both the aesthetic appeal and long-term durability of the concrete surface. ACI 347.3R-13 offers guidance to prevent damage and optimize strength development.
- **Stripping Times:** Forms should only be removed once the concrete has gained sufficient strength to support its own weight and any imposed loads, without damage. This is often determined by field-cured cylinder tests or maturity meters. Premature stripping can lead to cracking, spalling, or structural failure.
- **Gentle Removal:** Forms should be removed carefully, avoiding sudden jolts or prying that could chip or damage the edges and corners of the newly exposed concrete.
- **Immediate Curing:** Once forms are removed, the exposed concrete surface must be immediately protected from moisture loss through proper curing. This could involve water curing, membrane-forming curing compounds, or wet coverings.
**Common Mistake to Avoid:** Premature formwork removal or neglecting immediate, continuous curing. Stripping too early risks surface damage and strength reduction. Inadequate curing leads to reduced strength, increased permeability, and potential surface defects like dusting or crazing.
**Actionable Solution:** Establish clear stripping schedules based on concrete strength data, not just elapsed time. Use non-damaging tools and techniques for form removal. Immediately after stripping, initiate a robust curing regime for the specified duration (typically 7-14 days), ensuring the concrete remains moist to allow for full hydration.
---
6. Post-Placement Inspection & Remediation: Quality Assurance
Even with the best practices, minor imperfections can occur. ACI 347.3R-13 guides the inspection process and outlines acceptable remediation techniques for common surface defects.
- **Thorough Inspection:** After formwork removal, the entire concrete surface should be systematically inspected for defects like bug holes, honeycombing, spalling, staining, or misalignments.
- **Defect Assessment:** Each defect should be assessed against the specified surface classification. A small number of minor bug holes might be acceptable for Class B, but not for Class A.
- **Appropriate Remediation:** Repair methods should be chosen based on the type and severity of the defect, and the specified surface class. For example, bug holes might be filled with a patching mortar, while honeycombing may require chipping out and repatching or, in severe cases, removal and replacement.
**Common Mistake to Avoid:** Ignoring minor defects in hopes they won't be noticed, or attempting improper, non-matching repairs. Poor repairs can often look worse than the original defect and compromise durability.
**Actionable Solution:** Conduct inspections promptly after form removal, documenting all observed defects. For Class A and B surfaces, prepare sample repairs to demonstrate the proposed method and achieve an acceptable match in color and texture before proceeding with widespread repairs. Ensure repair materials are compatible with the base concrete and applied by skilled personnel following manufacturer guidelines.
---
Conclusion
ACI 347.3R-13 is more than just a guideline; it's a blueprint for excellence in formed concrete surfaces. By meticulously adhering to its principles—from careful surface classification and robust formwork design to precise concrete placement, timely stripping, and diligent curing—you can significantly enhance the quality, durability, and aesthetic appeal of your concrete structures. Proactive planning, rigorous quality control, and a commitment to addressing potential issues head-on are the keys to avoiding common pitfalls and consistently delivering concrete surfaces that meet or exceed expectations.
