# Vertical Revolution: How 3D IC Integration and Packaging are Redefining Electronics
The relentless pursuit of smaller, faster, and more powerful electronic devices has long been the driving force behind the semiconductor industry. For decades, this quest was largely satisfied by Moore's Law – cramming more transistors onto a two-dimensional chip. However, as the physical limits of traditional scaling approach, a new paradigm is emerging: **3D IC Integration and Packaging**. This groundbreaking technology is not just an incremental improvement; it's a fundamental shift, stacking components vertically to unlock unprecedented levels of performance, power efficiency, and miniaturization, promising to revolutionize everything from artificial intelligence to mobile computing.
What is 3D IC Integration?
At its core, **3D IC integration** involves stacking multiple integrated circuit (IC) dies (or chips) vertically and connecting them with extremely short, high-bandwidth interconnects. Unlike traditional 2D packaging, where chips are laid out side-by-side on a substrate, 3D integration creates a compact, multi-layered "chip sandwich." This vertical approach dramatically reduces the physical distance data needs to travel, overcoming the limitations imposed by the lengthy wiring in planar designs.
This sophisticated stacking process moves beyond simple multi-chip modules (MCMs) by enabling direct, high-density communication between layers. Imagine a multi-story building where each floor is a specialized chip – a processor on one, memory on another, and sensors on a third – all communicating seamlessly through internal elevators, rather than having to go outside and take a long path around. This architectural innovation is key to pushing the boundaries of what's possible in semiconductor design.
The Driving Forces Behind the Vertical Leap
The semiconductor industry is increasingly facing an "interconnect bottleneck." As transistors shrink, the wires connecting them on a 2D chip do not scale down proportionally, leading to increased resistance, capacitance, and power consumption. This makes data transfer between distant parts of a chip, or between separate chips on a board, a significant performance and power overhead. **3D IC integration** directly addresses this by drastically shortening interconnect lengths.
Furthermore, the demand for specialized functionalities within a single package is growing exponentially. High-performance computing (HPC), artificial intelligence (AI) accelerators, and advanced mobile devices require diverse components like logic, various types of memory, and even optical or MEMS sensors to work in concert. **3D packaging** allows for the heterogeneous integration of these different chip types, potentially even fabricated on different process technologies, into a single, compact unit. This not only saves space but also optimizes the entire system for specific tasks, leading to superior power efficiency and overall system performance.
Key Technologies Enabling 3D Packaging

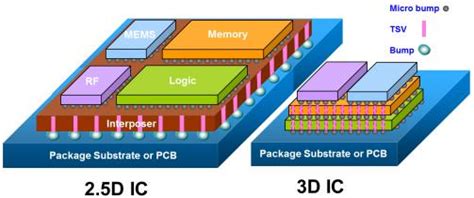

The realization of **3D IC integration** hinges on several sophisticated manufacturing technologies, chief among them being Through-Silicon Vias (TSVs). TSVs are vertical electrical connections that pass directly through the silicon wafer or die, acting as the "elevators" that connect the stacked layers. These microscopic vias are critical because they provide thousands of short, high-bandwidth connections between stacked chips, far surpassing the limited number of connections available in traditional wire bonding or flip-chip methods.
Beyond TSVs, the method of bonding the stacked dies together is equally crucial. Microbumps, tiny solder or copper pillars, are used to create electrical and mechanical connections between the TSVs on one die and the corresponding pads on the next. More recently, hybrid bonding, which directly fuses metal pads and dielectric layers at very fine pitches, is gaining traction. This advanced technique offers even higher connection density and improved electrical performance, paving the way for even more tightly integrated **stacked dies** and pushing the limits of **semiconductor technology**.
Applications and Impact Across Industries
The transformative potential of **3D IC integration** is poised to impact a wide array of industries. In high-performance computing and data centers, **3D packaging** is already being deployed in High Bandwidth Memory (HBM) stacks, which are co-packaged with GPUs and CPUs to overcome memory bandwidth limitations, significantly boosting the performance of AI training and scientific simulations. This dramatically improves data throughput, a crucial factor for processing massive datasets.
For consumer electronics, particularly smartphones and wearables, **3D ICs** enable unprecedented levels of miniaturization and functionality. Imagine more powerful AI co-processors in your phone, enhanced camera modules with integrated image processing, or even more sophisticated sensors in a smartwatch, all within the same or even smaller footprint. In the automotive sector, 3D integration can lead to more compact and robust advanced driver-assistance systems (ADAS) and in-vehicle infotainment systems, while in the Internet of Things (IoT), it facilitates ultra-low-power, highly integrated sensor nodes for smart cities and industrial applications.
Challenges and the Path Forward
Despite its immense promise, the widespread adoption of **3D IC integration** faces several significant hurdles. Manufacturing complexity, ensuring high yield rates across multiple stacked dies, and the associated increase in production costs are primary concerns. Thermal management is another critical challenge; stacking chips generates more heat in a smaller volume, requiring innovative cooling solutions to prevent performance degradation and reliability issues.
Moreover, the design, testing, and standardization of **3D ICs** are far more intricate than for 2D chips. New design tools are needed to optimize power delivery, signal integrity, and thermal profiles across the vertical stack. Comprehensive testing methodologies must be developed to identify defects in individual layers and the complex interconnects. As the industry collaborates on these challenges, driven by consortia and open standards initiatives, the path forward for **advanced packaging** looks increasingly clear, promising a new era of innovation in electronics.
Conclusion
**3D IC integration and packaging** represent the next frontier in semiconductor advancement, offering a compelling solution to the impending limitations of traditional 2D scaling. By enabling the vertical stacking of diverse components with high-bandwidth interconnections, this technology promises a future of vastly more powerful, energy-efficient, and compact electronic devices. While challenges in manufacturing, thermal management, and design remain, the relentless innovation in **semiconductor technology** and collaborative industry efforts are steadily paving the way for a vertical revolution, fundamentally reshaping the landscape of modern electronics and driving the next wave of technological breakthroughs.
